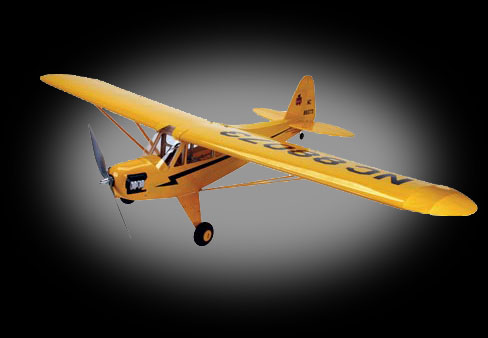

J-3 Cub 25 ARF
Part# 0V-EFL4000
Key
Features

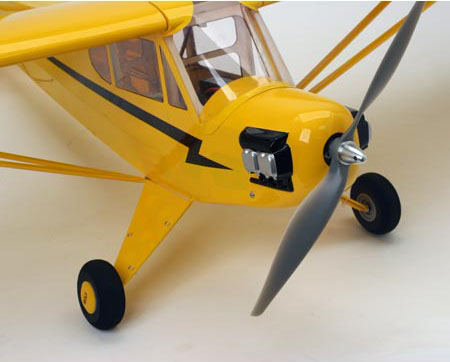

• Outstanding scale detail, including the factory-painted
fiberglass cowl with molded engine detail
• Scale aileron design sets the E-flite J-3 Cub apart from other 25-size electric
Cubs on the market
• E-flite's optional 25-size floats are easy to assemble and attach to the J-3 Cub,
and offer thrilling performance during water taxi and take-off
• Built-in float mounts
• Removable one-piece wing for fast transition to the flying field

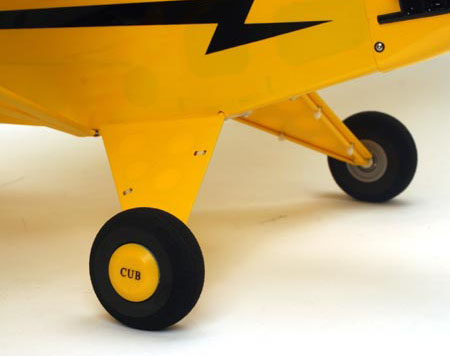

• Factory-painted landing gear with authentic Cub wheel caps
• Quality balsa and light-ply construction, and genuine Ultracoat covering
• Outrunner-ready firewall—perfect match for E-flite’s Power 25 Outrunner,
870 Kv
• Flies great with LiPo or Ni-MH packs
Overview
This is the only 25-size Cub with scale ailerons.
Quality balsa and light ply construction make for a sturdy, lightweight airframe
that handles incredibly well in most any flying situation. The firewall is set
up for use with an outrunner motor, such as E-flite’s Power 25, making
a perfect power match for the airframe. Optional floats add a new dimension
to the scale flying experience, and the one-piece wing allows for easy transportation
to and from virtually any flying field, pond or lake.
| Wing
Span |
62 inches (1575 mm) |
| Overall
Length |
35.5
inches (900 mm) |
| Wing
Area |
550
sq inches (35.5 sq dm) |
| Flying
Weight |
4.0
- 4.25 lbs (1.8 - 1.9 kg) with Ni-MH battery pack |
| Motor
Size |
Recommended:
E-flite Power 25 Outrunner - not included |
| Radio |
Minimum
Requried: 4 channels - not included |
| Servos |
Required:
4 Mini Servos - not included |
| Trim
Scheme Colors |
UltraCote
Cub Yellow & Black |
| CG
(center of gravity) |
2 5/8
inches (66mm) from leading edge |
| Prop
Size |
12x6E
|
| Hardware
Included |
Y |
| Speed
Control |
Required:
40 amp brushless Recommended: E-flite 40A brushless (EFLA312B) |
| Recommended
Battery |
10-cell 12V 1800mAh Ni-MH or Thunder Power 3-cell 4200mAh Li-Po
- not included |
| Flaps |
N |
| Retracts |
N |
| Control
Throw (Ailerons) |
3/4
in Up/Down High Rates or 1/2 in Up/Down Low Rates |
| Control
Throw (Elevator) |
5/8
in Up/Down High Rates or 3/8 in Up/Down Low Rates |
| Control
Throw (Rudder) |
1-3/8
in Left/Right High Rates or 1 in Left/Right Low Rates |
| Approx.
Flying Duration |
8-10
minutes on Ni-MH and 15 - 18 minutes on Li-Po |
Needed to Complete
| Radio
System: 4 channels or more |
| Motor:
Power 25 Outrunner |
| ESC:
40A brushless |
| Battery:
10-cell 12.0V 1800mAh Ni-MH or 3-cell 4200mAh Li-Po |
| Servos:
4 JR Sport MN-48 |
|
| |
|
|
