Key
Features
• Designed for artistic aerobatics—a blend
of 3D and precision aerobatics
• Fuselage shape provides excellent side lift for knife edge flight
• Wide body fuselage design provides better downline speed management
• Low aspect ratio wing moves the center of lift closer to the fuselage
• Outstanding aileron authority for blazing-fast roll rates
• Superb, locked-in flight characteristics—flies exactly where you point
it
• Lightweight balsa and light ply construction
• Includes painted fiberglass cowl, aluminum landing gear and painted fiberglass
wheel pants
Overview

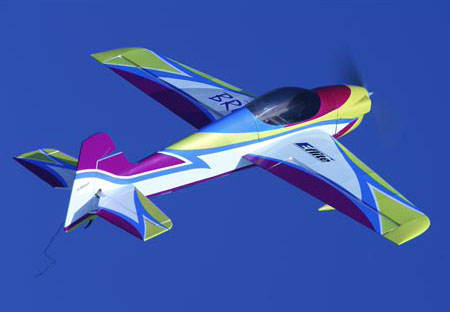

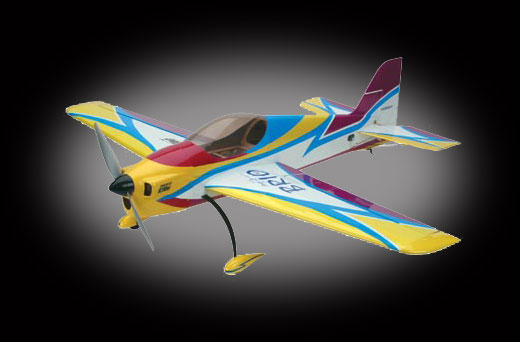

If anybody knows what precision feels like,
3-time World Champion and 2-time US Champion Quique Somenzini certainly does.
And he has poured all this experience into the design of the Brio 10—a
10-size replica that even flies the same as the F3A plane he used to win the
2005 US Nats. At the heart of its performance is a low aspect ratio wing that
moves the center of lift closer to the fuselage. The result is an electric pattern
plane with outstanding roll rates and a locked-in feel that will give you the
confidence to fly artistic aerobatics with absolute precision.
Here are just a few of the many features that
you'll find when you buy a Brio 10 from E-flite:
Factory Painted Fiberglass Parts and Aluminum
Landing Gear
The Brio 10 comes with expertly painted fiberglass parts such as the cowl and
wheel pants. Tough, lightweight aluminum landing gear is also included.

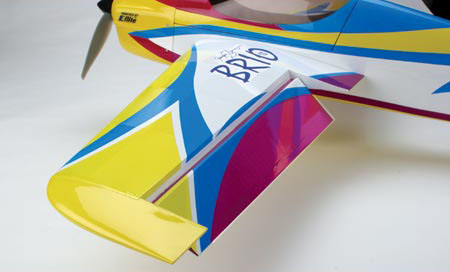

Quality Construction and Large Control Surfaces
The Brio 10 is built from the best balsa and light-ply materials, then covered
in genuine Hangar 9® UltraCote®. Its generously proportioned control
surfaces give it extraordinary responsiveness.
Magnetic Canopy Hatch
The Brio 10’s handy magnetic canopy hatch stays securely in place without
screws or tape.

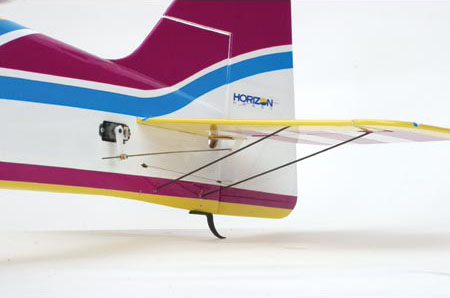

Carbon Fiber Stiffeners
Part of the Brio 10’s outstanding precision comes from carbon fiber stiffeners
on the elevator that virtually eliminate flex.
Whether
you desire aggressive 3D or high-speed F3A-type maneuvers, the Brio 10 will
fly exactly where it’s pointed, flight after flight, without needing constant
trim adjustments.
| Wing
Span |
41
in (1040mm) |
| Overall
Length |
40
in (1015mm) |
| Wing
Area |
325
sq in (21 sq dm) |
| Flying
Weight |
28-34oz
(795-965 g) |
| Motor
Size |
Park
480 Outrunner, Power 10 Outrunner, Six Series |
| Radio |
6-Channel
or greater |
| Servos |
4 Sub-Micros |
| Trim
Scheme Colors |
UltraCote
White, Fluorecscent Blue. Pearl Bright Yellow and
Fluorescent Violet. |
| CG
(center of gravity) |
3-7/8
to 4-3/8 in (100 to 110mm) behind the leading edge |
| Prop
Size |
11x7
Electric |
| Spinner
Size |
1-3/4
in |
| Hardware
Included |
Yes |
| Speed
Control |
35A
to 40A Brushless |
| Recommended
Battery |
3-Cell
11.1V 1320mAh to 2100mAh Li-Po |
| Control
Throw (Ailerons) |
7/16
in (11mm) Low Rate or 7/8 in (22mm) High Rate |
| Control
Throw (Elevator) |
7/8
in (22mm) Low Rate or 2 in (50mm) High Rate |
| Control
Throw (Rudder) |
1-1/2
in (38mm) Low Rate or 2-1/2 in (63mm) High Rate |
| Approx.
Flying Duration |
10
minutes |
| Approx.
Assembly Time |
5-6
hours |
Needed
to Complete
| 6-Channel
Radio, 6-Ch Receiver, 40A Brushless ESC, Brushless Motor, Prop, 11.1V 3-Cell
Li-Po Battery |
|
