Mini Ultra Stick ARF
Part# 0V-EFL2250
Key
Features
• Perfect transitional airplane for advancing pilots
who want to learn aerobatics and for sport flyers who want easy comfortable sport
flyer
• Design based on Hangar 9’s popular line of Ultra Sticks
• Lightweight balsa and ply construction
• Covered in genuine Hangar 9 UltraCote

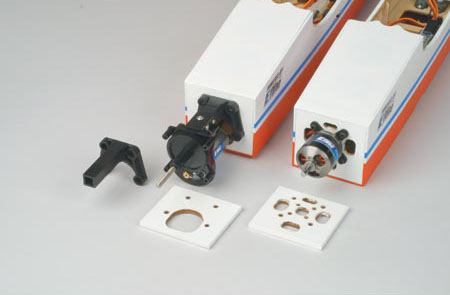

• Two firewall options let you use a wide variety of motor sizes, types and brands
• Includes molded firewall stick mount

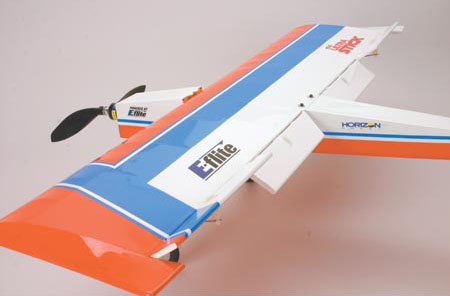

• Optional quad-flap configuration
• Tough, lightweight aluminum landing gear that’s pre-assembled and tall enough
to accommodate larger prop sizes
• 95% pre-built—get flying in 2 hours or less
• Control surfaces have pre-installed hinges and control horns
• Bolt-on tail requires no gluing and secures with two lock nuts
• Great match for E-flite Park 450 Outrunner Brushless Motor

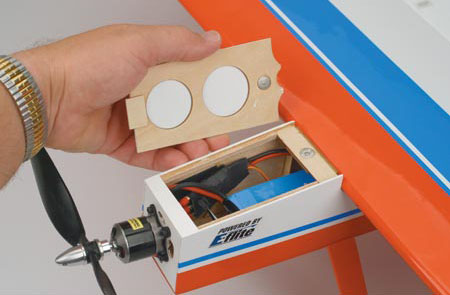

• Easy access top battery hatch
Overview
Based on the popular Hangar 9 Ultra Stick, the
E-flite Mini Ultra Stick comes 95% prebuilt from balsa and light-ply and is
covered in genuine UltraCote. At the heart of the Mini Ultra Stick’s fun
factor are two firewall options that let you use a wide variety of motor sizes,
types and brands. This along with the ample clearance for larger props that
its tall, lightweight aluminum landing gear provides gives the Mini Ultra Stick
huge performance potential. You can push the envelope even further by adding
the optional split quad-flaps.
| Wing
Span |
38.75
in (985mm) |
| Overall
Length |
34
in (865mm) |
| Wing
Area |
325
sq in (21 sq dm) |
| Flying
Weight |
22
- 25 oz (625 - 710g) |
| Motor
Size |
Park
400 Inrunner or Park 450 Outrunner |
| Radio |
4-channel
or greater (7-channel for quad flaps) |
| Servos |
4 sub-micros
(6 sub-micros for quad flaps) |
| Trim
Scheme Colors |
UltraCote
Fluourescent Blue, Flame Red, Transparent Red & White |
| CG
(center of gravity) |
2.25
in (57mm) behind the leading edge |
| Prop
Size |
10x7
- 11x7 |
| Hardware
Included |
Yes |
| Speed
Control |
20A
Brushless |
| Recommended
Battery |
2100
mAh 3-Cell 11.1V Li-Po |
| Flaps |
Yes
(optional) |
| Control
Throw (Ailerons) |
1/2
in (15mm) Up/Down Low Rate or 5/8 in (19mm) High Rate |
| Control
Throw (Elevator) |
9/16
in (18mm) Up/Down Low Rate or 7/8 in (23mm) High Rate |
| Control
Throw (Rudder) |
7/8
in (23mm) Right/Left Low Rate or 1-1/4 in (32mm) High Rate |
| Approx.
Flying Duration |
10-20
minutes |
| Scale |
Park
Flyer |
| Approx.
Assembly Time |
1-2
hours |
| Gear
Ratio |
6.5:1
when using Park 400 Brushless Inrunner |
Needed to Complete
| Brushless
Motor |
| Brushless
ESC |
| 4+
Ch Radio |
| 4 Sub-micro
Servos |
| Servo
Extensions & Y-harness |
| 4 to
6-Ch Receiver |
| Li-Po
Battery |
| Li-Po
Charger |
| CA |
| Propeller |
|
| |
|
|
