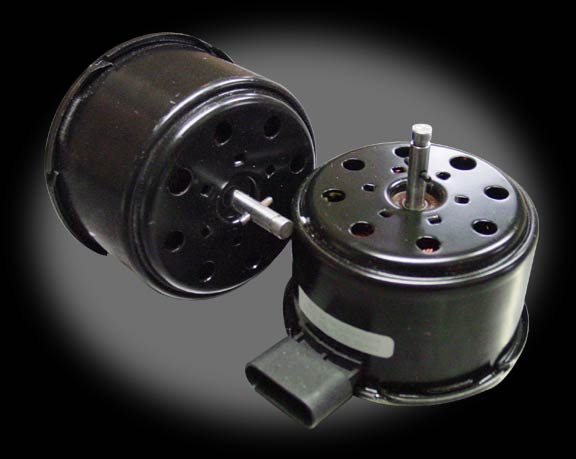

0M-EVCW EV Warrior Motor - CW <table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td colspan="3" class="main"><font size="2" face="Arial, Helvetica, sans-serif"><strong>CW
EV</strong></font></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="#FFFF00"></font></div></td>
<td class="main"><div align="center"><strong><font color="#FFFF00" size="2" face="Arial, Helvetica, sans-serif">12v</font></strong></div></td>
<td class="main"><div align="center"><strong><font color="#FFFF00" size="2" face="Arial, Helvetica, sans-serif">24v</font></strong></div></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No
load rpm</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2640
rpm</font>
</div>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">5380
rpm </font></div>
</tr>
<tr>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Peak
Horsepower</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">.368
hp </font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.53
hp </font></div></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No
load current</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3.9
A </font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3.9
A </font></div></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
current </font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">99.2
A </font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">198
A </font></div></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
torque </font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">563
oz-in </font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1150
oz-in </font></div></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Weight</font></div></td>
<td colspan="2" class="main"><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">3.24 lbs </font></div></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></div></td>
<td colspan="2" class="main"><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">4 in. </font></div></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Length</font></div></td>
<td colspan="2" class="main"><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">2.72 in. </font></div></td>
</tr>
<tr>
<td class="main"><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Shaft</font></div></td>
<td colspan="2" class="main"><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">8mm diameter x 30mm </font></div></td>
</tr>
</table>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">When installing,
you will notice there are 3 pins on the connector of this motor,
you may ignore the center one and hook your + and - to the outer
two pins. Reverse the polarity to reverse direction of the motor
(or just let your speed
controller do that for you). </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> A great tutorial
on how to change the timing of your EV motor can be found <a href="http://redneckrobots.com/ev/mod.htm" target="_blank">here</a>.</font>
