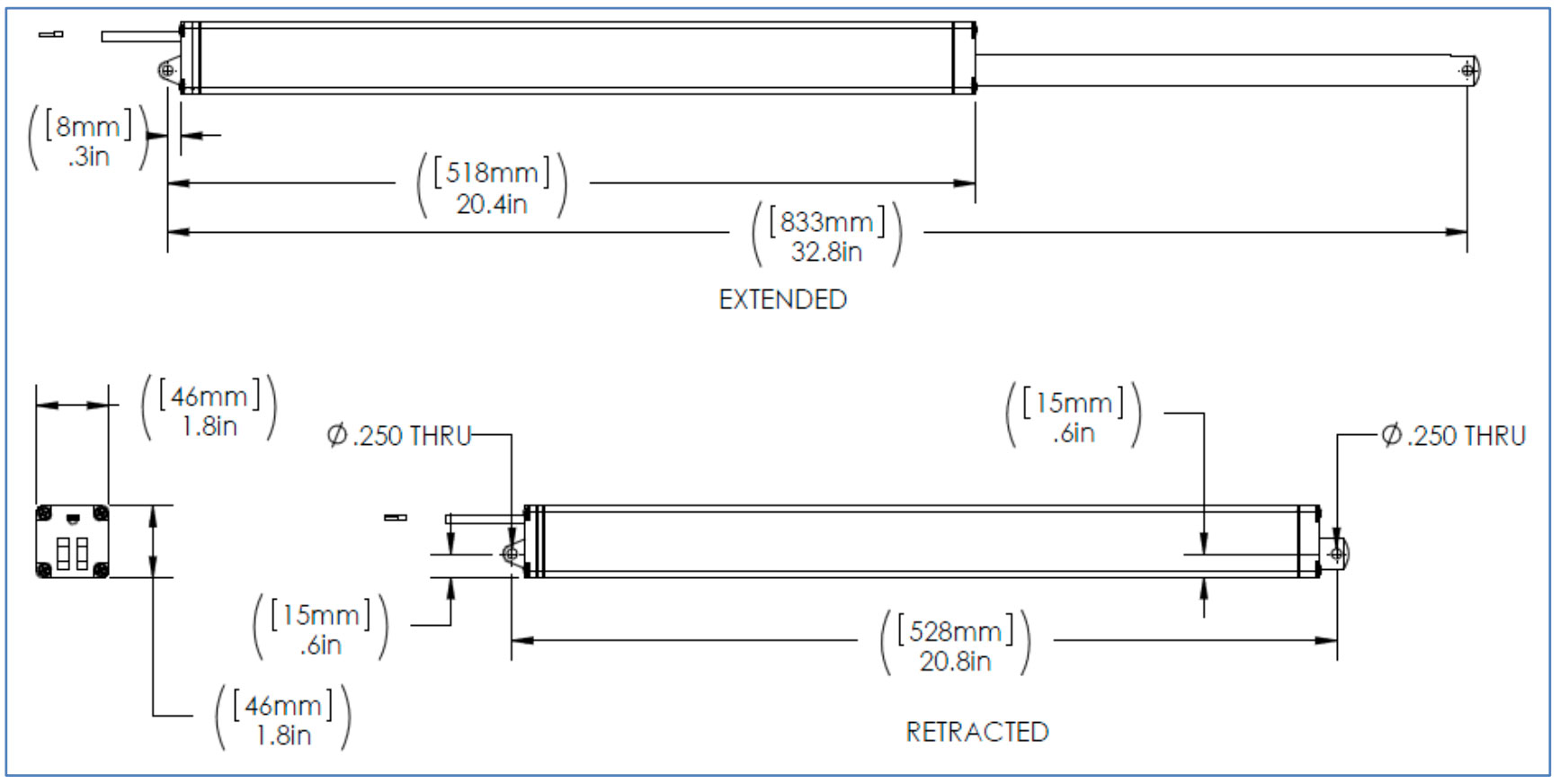

0-i05882 Torxis Linear 2.0 Servo, Fast, 40 lb Force, 11.5 inch Stroke <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This industrial grade linear servo product respons to standard RC PWM control signals from RC radios, Arduino microcontrollers, etc. IP54 environmental rating ensures moisture and dust stays out. Rugged extruded aluminum housing provides low weight and good durability. <p>Specifications<br>- 150 lb (68kg F) / 40 lb (18 kg F) force<br>- Uses standard RC PWM input command signal<br>- 12 VDC Power, ~3A at full load<br>- Dimensions: 1.7 in (4.3cm) X 1.7 in (4.3cm) (See data sheet for additional dimensions)<br>- Weighs 3 lb(1.4 kg)<br>- Holds load without power<p>Linear RC Servo with 40 lb (18 kg F) and 1.0 inch/s (2.6 cm/s) speed at 12 VDC, 11.5'' (29cm) Stroke. RC PWM input signal, closed loop position control. RC signal connector on 18'' cable. 18 inch power cable with tinned ends.</p></font>

Torxis Linear 2.0 Servo, Fast, 40 lb Force, 11.5 inch Stroke
This is the intelligent, RC PWM controlled 12 VDC powered, linear servo.

$319.99
Robot MarketPlace - Torxis Linear 2.0 Servo, Fast, 40 lb Force, 11.5 inch Stroke

RC Gear
    Servos - Linear


Click photo to enlarge.

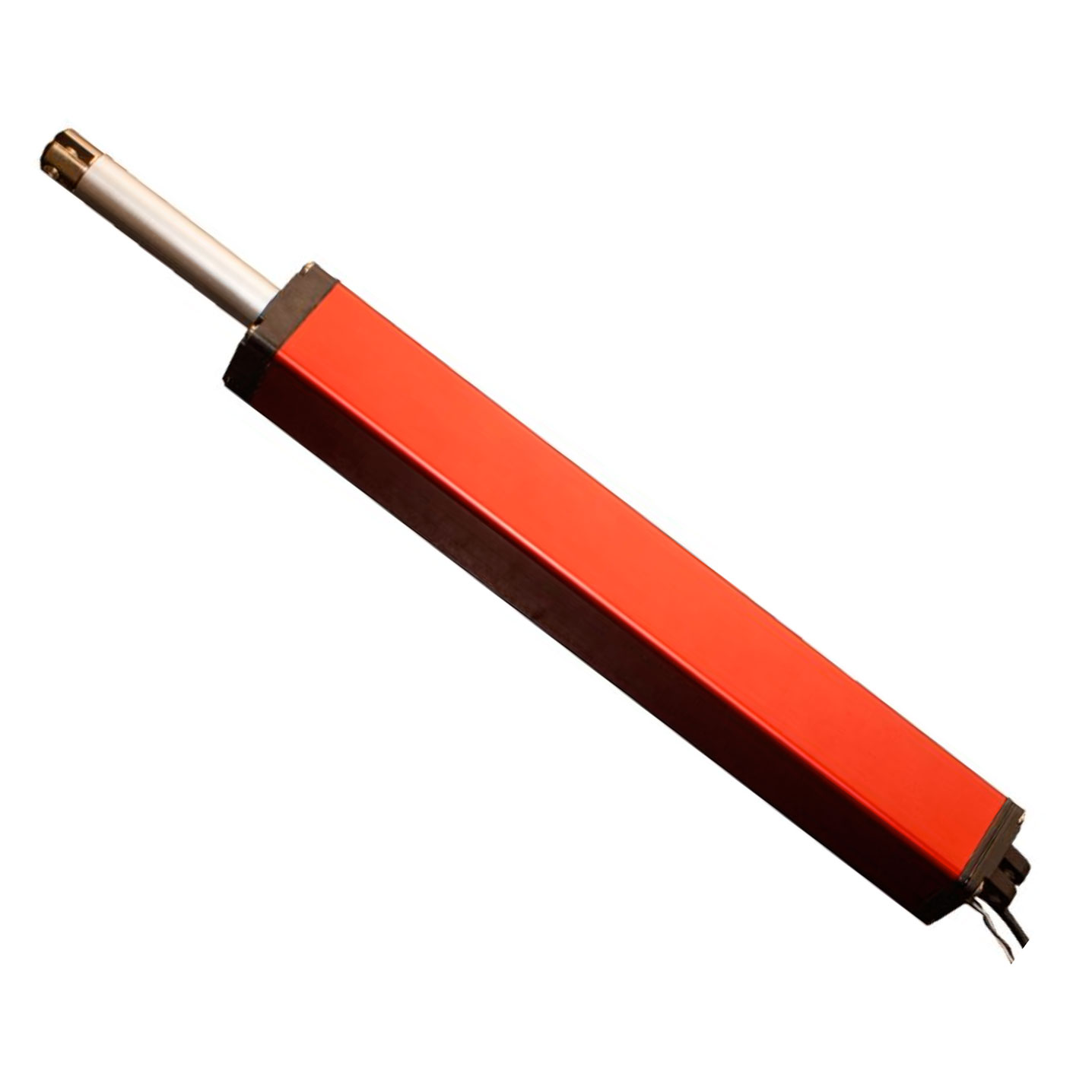

Torxis Linear 2.0 Servo, Fast, 40 lb Force, 11.5 inch Stroke
Part# 0-i05882




Please see this product on the new Robot MarketPlace web site. Click here









Other products you may be interested in:
Torxis Linear 2.0 Servo, 150 lb Force, 5.5 inch Stroke

Torxis Linear 2.0 Servo, 150 lb Force, 11.5 inch Stroke

Torxis Linear 2.0 Servo, 150 lb Force, 17.5 inch Stroke

Torxis Linear 2.0 Servo, Fast, 40 lb Force, 5.5 inch Stroke

Torxis Linear 2.0 Servo, Fast, 40 lb Force, 17.5 inch Stroke
