0-TMEXTRMPB Ultra-Micro Battery Adapter <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This adapter allows you to charge up to 4 Ultra-Micro Batteries (E-flite and ParkZone single-cell LiPo batteries, and the Kyosho Minium Series) with any charger that supports 1s (3.7V) Lithium batteries (like TME's Xtrema Charger) via a standard JST connector.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This adapter is designed to allow you to connect these 1-cell batteries via a JST connector to the LiPo charger of your choice. The adapter connects them in parallel, accommodating batteries of different capacities. By charging in parallel the only requirement is that all cells must be near their normal discharged state before connecting together and consequently charging. You have complete control over the charge rate, allowing you to choose a safe 1-hour charge for max battery life.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Use your current lithium charger to charge Ultra-Micro batteries<br />
Allows up to 4 ultra-micro batteries to be charged with any charger that supports 1S (3.7V) Lithium batteries via a standard JST connector<br />
Works with the batteries utilized by ParkZone’s Vapor, Ember/2, Sukhoi, P-51, and J-3 Cub; E-flite’s Blade mCX, S300, MSR, and Tandem Rescue; and Eflite's Ultra-Micro 4-Site<br />
The simple, cost effective way to charge Ultra-Micro batteries quickly and safely</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">How It Works</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
The adapter simply allows you to connect up to 4 batteries in parallel so that you can charge them as a single larger mA single cell battery (i.e. 1s4p). The only requirement is that all the batteries be reasonably close in charge level. For example, if you either time your flights or fly till cutoff. You want to avoid connecting a fully charged battery to a group of discharged cells, since a rapid rush of current would occur.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">As you plug in the batteries they will be tied together and will self balance. Then connect the JST connector to your existing charger that supports 1 cell (1s) charging and set the charge mA to the sum total of the mAh rating for each cell. You can even mix 70mAh with 110mAh, 150mAh, 250mAh and so on. Since they all receive the same voltage each cell only takes the mA it needs to charge to 4.2 volts max. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">For example: If you have a 70mAh and three 110mAh batteries you would set your charger to 70+110+110+110= 400mA. At this current they will charge at the safe 1 hour rate. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Want to do more than 4 batteries? No problem, get a second or third adapter and connect with a parallel Y adapter and charge up to 8, 12 or more! You are limited only by your chargers current capabilities.</font></p>

Ultra-Micro Battery Adapter
This adapter allows you to charge up to 4 Ultra-Micro Batteries with any charger that supports 1s (3.7V) Lithium batteries via a standard JST connector.

$9.95
Robot MarketPlace - Ultra-Micro Battery Adapter

Batteries
    LiPoly Accessories

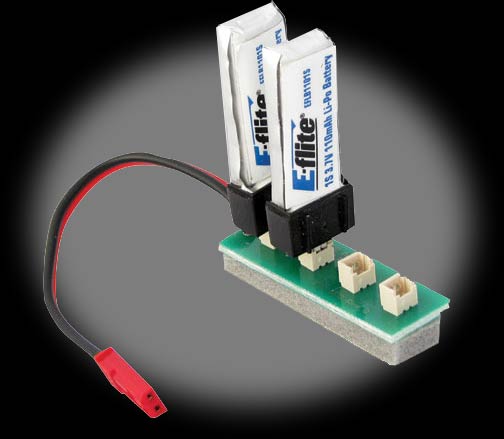

Click photo to enlarge.

Ultra-Micro Battery Adapter
Part# 0-TMEXTRMPB


No reviews yet - Add yours now!

$9.95
This Product Has Been Discontinued
Stock Status: Removed
