0-TEKC2425 Tekin RS 1/10 13.5 Gen2 Sensored Brushless Motor System <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The RS GEN2 brushless speed control is the next generation in intelligent operating motor drive technology. Continuing the proven award-winning legacy of the RS familly, the GEN2 is fitted with todays state of the art components. The RS GEN2 delivers what racers require; reliability, precise control and unmatched power handling capability.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Packed with new features, the RS GEN2 delivers a programmable high-voltage BEC, an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package. Rated for 8.5 turn motors and higher, the GEN2 is the perfect ESC for both experienced and new racers. Couple the RS GEN2 with a Redline GEN2 brushless motor for the ultimate package in race equipment. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Tekin's second generation motors carry forward engineering principles and performance benchmarks set by the Tekin Redline name. The Gen2 Redline Sensored Motor incorporates the latest technology advancements in brushless motor design and manufacturing, giving you the torque and RPMs you want when you need it. On Road or Off, Tekin's Gen2 Sensored motors handle your demands and deliver smooth power across all RPMs.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Ultra-smooth and Precise Throttle and Braking Control<br />
Compatible with Sensored/Sensorless Brushless and Brushed Motors<br />
Easily Access Programming, Anywhere, Anytime<br />
Datalogging Capability<br />
High Voltage Programmable BEC<br />
EZ Access HotWire Programming Port <br />
HotWire PC Interface for Advanced Programming and Updating<br />
D2: Dual Drive Mode Technology<br />
On-Board Temperature Indicator<br />
HDAC: High Density Copper PCB's<br />
Sensor Plug for Precise Commutation with all Motors<br />
Gold-plated Solder Posts for Easy Wire Replacement<br />
Self Test Diagnostics and Factory Reset<br />
Pit Tune Mode<br />
DGF2: Digital Glitch Filtering V2<br />
QuickTune™ Programming<br />
One-Touch Radio Calibration</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">ESC Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4-9 cells, 2S-3S LiPo </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.0V/7.4V, 5.5A </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushless Mode Motor Limit </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8.5 turn, 540 2-pole (36mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushed Mode Motor Limit Forward Only </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10 turn </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushed Mode Motor Limit Reverse </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12 turn </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">120A per phase </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Timing Profiles </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7 choices on-board </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushed Modes </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fwd only, Fwd/Rev, Rev Delay </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushless Modes </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fwd only, Fwd/Rev, Rev Delay </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.0 x 1.3 x 0.51 in. (25.4 x 33 x 12.9mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.0oz (48g) with wiring </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">13.5 Redline Gen2 Motor Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.2oz (177g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Dimension </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5 x 15.3mm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.40 in. (35.85mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.03 in. (51.8mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearing Dimensions </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Front: 4 x 13 x 5mm <br />
Rear: 1/8 x 3/8 x 5/32 in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">kV</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3400</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rotor</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.5mm</font></td>
</tr>
</table>

Tekin RS 1/10 13.5 Gen2 Sensored Brushless Motor System
Combine two of Tekin's products into a powerful motor and ESC package.

$264.99
Robot MarketPlace - Tekin RS 1/10 13.5 Gen2 Sensored Brushless Motor System

Motors
    Brushless Motor and ESC Systems

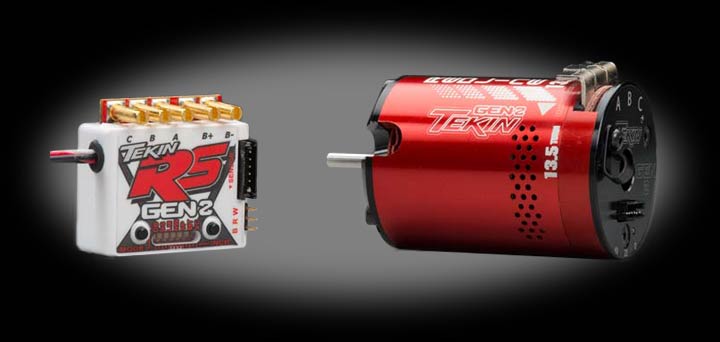

Click photo to enlarge.

Tekin RS 1/10 13.5 Gen2 Sensored Brushless Motor System
Part# 0-TEKC2425
