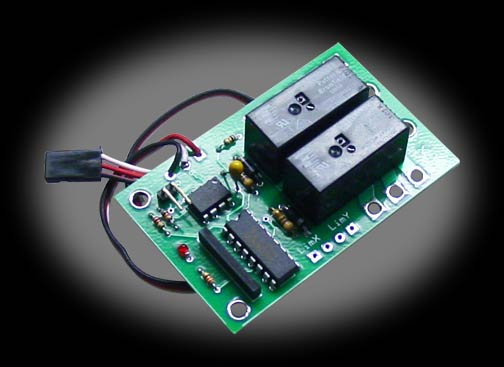

Robot MarketPlace - RCE220 RC Small Dual Relay Switch

Switch two things on and off with one transmitter stick! Using only one channel output from your RC receiver, you can drive two independent motors, contactors, or pneumatic/hydraulic solenoids. Great for remotely-operating some of our larger solenoids or relays. Plus, a simple wiring configuration also converts this to a mechanical H-bridge which is perfect for running a single linear actuator or motor in both forward/off/reverse.

When used with an actuator, optional inputs from limit switches permit you to arrest motion in either direction. Silver cadmium oxide relay contacts. Maximum motor/coil load: 12 amps at 30 volts DC inductive.

Fault detection safely switches off both relays if receiver signal is lost.

	RCE220
Size	2.85" x 1.90"
Weight	1.59 oz with RC cable
Supply voltage	3.8 - 5.5 VDC
Supply current	20ma standby, 75ma when energized
Switching time	7.0 milliseconds
Load rating	12 amps at 30V DC

An RC Servo lead (10" long) is already soldered to this unit- you only need to solder on your input/output wires. Price reflects the addition of this servo lead. Connector is universal Futaba/JR style.

Click here to add your own review or comment for this product.

5/29/2012

Joe

Simple

Easy to install, all you need to do is solder your out puts plug in servo connector and it works. Luv it

11/21/2011

juan

Love it........works perfect!!!!

10/13/2011

Chas - Nottingham, England

Well Impressed

Excellent bit of kit. I Tried for ages to locate something similar here in the UK (i.e. Robbe, Graupner + searching the web). Couldn't find one with a suitable power rating or that operated in forward-off-reverse mode. Didn't have to pay any import duties on it so the price(inc postage)was really good.
The relays are really fast and having the 2 onboard limit microswitch capability was even better. I'm using to control/limit the motorfor a screw actuator that lowers and raises the ramp on a 1:15th scale landing craft kit from KMB (Germany)

1/10/2011

Chaos2

Dual Relay Switch

I love this little device. It works great! And it's easy to hookup. The soldering pads are big enough to where I didn't have to worry about causing a short circuit due to molten solder.

7/19/2010

Eduardo Yraola

I am using the double switch as reverse switch to drive a ballast pump in a RC submarine. It works great.
No complains.

6/7/2010

UAV Dude

It's great, BUT...

I really liked the RCE220. It performed as advertised. I had planned to use it control shutter and video record functions via remote. It outperformed other solutions because with this I could have multiple actions on the same channel. BUT, the application is on a Tri-copter and the RCE220 was heavier than I wanted. I had to remove it and opt for a much lighter (one function per channel) option. If this could be repackaged with lighter low amp relays and lighter all around, I would buy and recommed more to the growing Arial Photography community.

4/7/2010

Izzy

Item works very well - nice size and durable. I have used several for my projects. Clear easy to understand directions.

3/22/2010

Marc

Simple and efficient

Well designed part, down to the simple details that make a difference like the limit switch inputs and LED feedback. Used it for a mechanism that needed simple forward and reverse action. Works great.

2/27/2010

shocker

Luvit

i brought a motor controller and hated it I replaced it with two of these, best decision ever. I have recently brought two more for my robot arm.

2/27/2010

Fixit

Works Great

Love it
