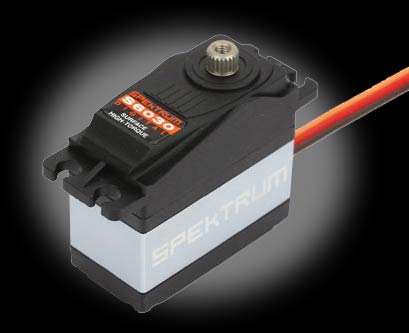

0-SPMSS6030 Spektrum S6030 Digital High Torque Surface Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The heavy-duty, metal-gear S6030 puts out an incredible 278 oz-in of torque making it the perfect servo for 1/10-scale monster trucks, buggies and truggies. And it delivers this torque with silky smooth precision thanks to its dual ball-bearing output shaft.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Delivers torque with silky smooth precision<br />
Heavy-duty<br />
Dual ball-bearing output shaft<br />
Overload protection<br />
8 inch 22AWG lead<br />
Mounting lug height optimized for surface applications</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">40mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">37mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.8 oz. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">278 oz-in. at 6V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.15 sec/60deg at 6V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearing Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dual</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Coreless</font></td>
</tr>
</table>
