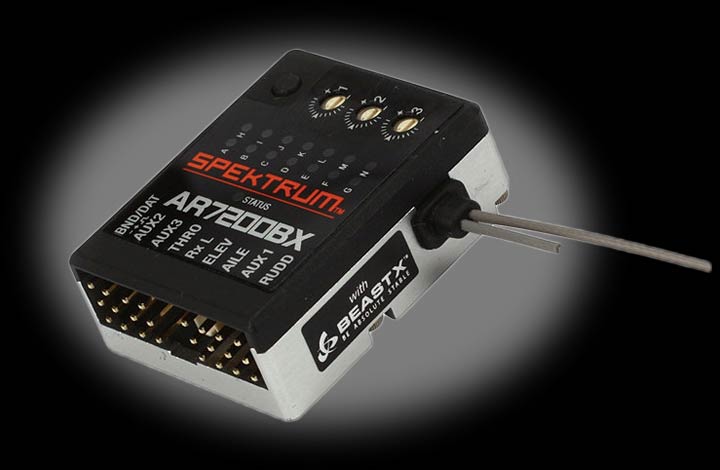

0-SPMAR7200BX Spektrum AR7200BX 7-Channel DSMX Flybarless Control System <p></font><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/v/dpXL3fAKcGc?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="Spektrum Binding Process - The Robot MarketPlace"><img src="videos/data/thumbnails/spektrum_binding.jpg" alt="Spektrum Binding Process - The Robot MarketPlace" /></a></div></div>
BeastX® flybarless technology is the most powerful, easiest-to-use flybarless technology flying today. And now with the amazing AR7200BX system, you can add it to your 250- to .90-size helicopter while saving space and reducing flying weight at the same time. The groundbreaking Spektrum innovation combines a 7-channel DSMX® receiver with a BeastX, 3-axis MEMS stabilization system into a single compact unit. Besides eliminating the mechanical complexity of a flybar, the BeastX technology built into the AR7200BX system lets you quickly fine-tune stability, cyclic response and tail response without touching a single linkage or require special software. All you need is your DSM2®/DSMX transmitter and this unit.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Integrated BeastX® 3-axis MEMS gyro<br />
250- to 800-size helicopters<br />
Easy-access design for field adjustments<br />
DSMX® safety and control<br />
Flight log telemetry-compatible<br />
11ms frame rate<br />
2048 resolution</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Flybarless Control System Receiver </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Modulation</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DSM2/DSMX</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of Channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Band</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.4GHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.42 x 1.10 x 0.50 in. (36 x 28 x 13mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.66oz (18.6g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.5-9.6V</font></td>
</tr>
</table>
