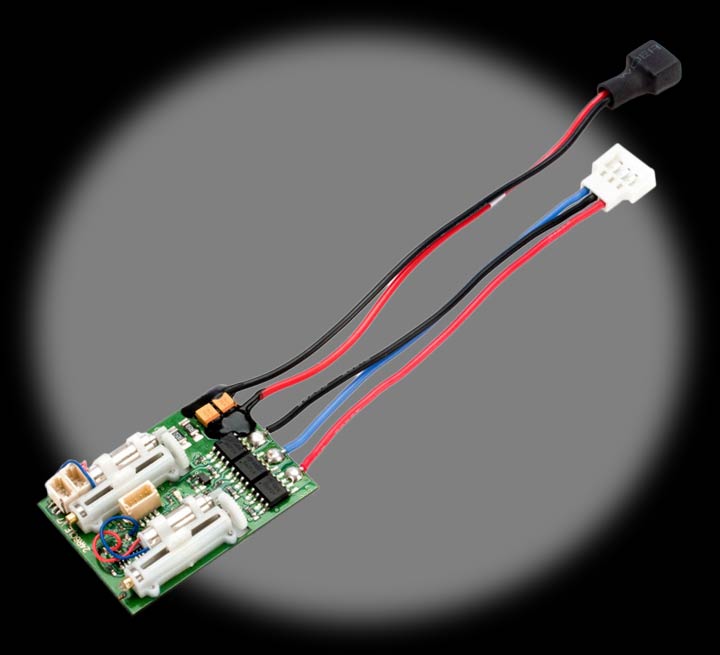

The Spektrumª AR6410LBL is a 6-channel ultra micro receiver with two integrated linear long-throw servos, programmable brushless speed control and X-Portª technology. The AR6410LBL receiver is designed for ultra micro and ultralight foamy aircraft. Featuring DSMX¨ technology, the AR6410NBL receiver is compatible with all Spektrumª, JR¨, E-flite¨ and ParkZone¨ 2.4GHz DSM2¨ and DSMX technology transmitters.

Applications:
The AR6410LBL is designed for ultra micro aircraft and is ideal for scratch-built ultra micro projects. It utilizes a two-cell LiPo battery and can be used with the integrated brushless speed controller to power a brushless motor up to 3.9-amps of continuous current. An integrated X-Port feature allows for future expansion. When X-Port technology is active, CH5 and CH6 are not available; however, reversed aileron (CH2) is still available.

Servos:
Force: 2.8 oz (79 g)
Stroke: 9.1mm
Speed: 0.14 sec
Stall current: 80mA at 4.2V without load

Speed Controller:
Type: Integrated programmable brushless
Max continuous current: 4.9 amps
Overload protection current: 5A for 500ms
BEC continuous current: 1A
BEC overload protection current: 1A, 4.2V
Low-voltage cutoff: <6.3V motor pulsing, <6.1V motor cuts off and LED flashes
Over-current protection: 5A motor cuts off until throttle stick is pulled down to idle
Temperature protection: 120C motor cuts off
Programming features: See the "Programming the Brushless ESC" Section

Features
6-channel ultra micro receiver
Two integrated linear long-throw servos (elevator and rudder) plus two additional servo ports
Integrated programmable brushless speed control
Weighs just 7.8 grams
Compatible with optional Spektrumª ultra micro linear servos
Smart Bindª technology
X-Portª technology allows for future expansion

Specs
Antenna Length	31mm
Band	2.4GHz
Model Type	Airplane
Modulation	DSM2/DSMX
Number of Channels	6
Range	Park Flyer
Length	1.63 in (41.6mm)
Width	1.12 in (28.55mm)
Height	0.32 in (8mm)
Weight	0.28 oz (7.8g)

Note: Not compatible with the Spektrum DX6 park flyer transmitter.
