0-SPMAR6115E Spektrum AR6115e 6-Channel DSMX Microlite Receiver - End Pin <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
<div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/v/dpXL3fAKcGc?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="Spektrum Binding Process - The Robot MarketPlace"><img src="videos/data/thumbnails/spektrum_binding.jpg" alt="Spektrum Binding Process - The Robot MarketPlace" /></a></div></div>

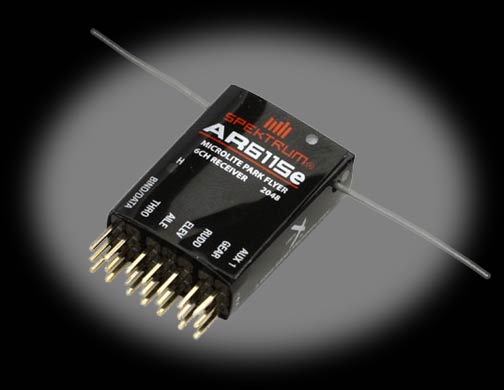

Spektrum's 2.4GHz DSMX Technology gets even smaller with the AR6115e 6-channel DSMX Microlite Park Flyer Receiver with End Pins, which is ideal for small compact airframes. The AR6115e weighs less than 4.3 grams, making it a light 6-channel aircraft receiver option. Antenna locations give the AR6115e improved signal path diversity. The receiver also features a red LED that indicates the number of holds that have occurred since the receiver was last powered on. The AR6115e is compatible with all aircraft DSMX radios and module systems. It is designed for parkflyer use only.

</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Microlite Park Flyer Receiver </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of Channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Modulation</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DSM2, DSMX </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Band</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.4GHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.11 x 0.83 x 0.39 in. (28.2 x 21 x 10mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.14 oz (4g)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input: 3.5-9.6V </font></td>
</tr>
</table>

<p><font color="00ff66" size="3" face="Arial, Helvetica, sans-serif"><font color="ffff00"><font color="#00FF33" size="2"><br>
This receiver is a very small size, pe</font></font></font><font color="00ff66" size="3" face="Arial, Helvetica, sans-serif"><font color="ffff00"><font color="#00FF33" size="2">rfect
for smaller robots. </font></font></font></p>
