The

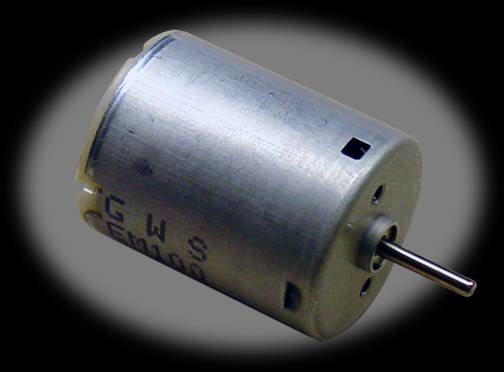

T-280 Ferrite motor is a small, extremly high speed brushed DC motor, great
for a very inexpensive spinning weapon on an antweight. Or, combined
with the right geardown system, it would also make a great drive
motor for smaller robots.
Unlike
the more powerful and faster brushless
motors, this motor can use a standard brushed controller such
as our Pixie-7P.
Operating
Voltage: 7.2-11.1V
Weight: 1.41 oz
No Load speed: 18,900rpm @ 7.2V
Load speed:
13,900rpm @ 7.2V
approx 5amps max
Diameter: 24mm
Length: 30mm
Shaft: 2.3mm diameter
Solder Terminals, prewired with a small, 2-pin connector (see alternate photos)
Bronze bushings
Buillt-in capacitors
We
recommend using the Pixie-7P
speed controller for this motor, or the AUX channel of your small robot speed controller.
