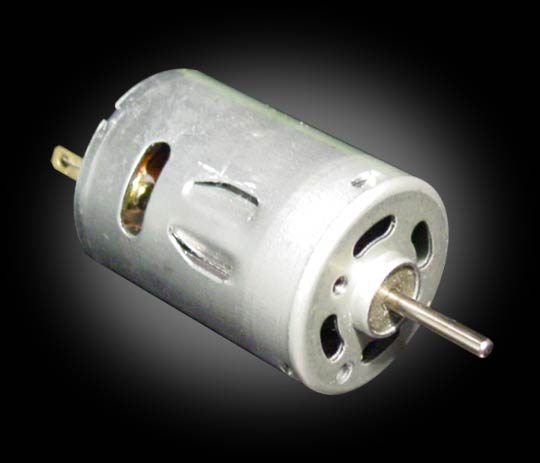

This product has been discontinued. Please see this similar product instead. The
Speed 380 comes in the same case size as the Speed 400, but at an
even cheaper price.
Unlike
the more powerful and faster brushless
motors, this motor can use a standard brushed controller such
as our Sprite-25.
Weight:
2.55 oz
No Load speed: 17,000rpm @ 7.2V
Load speed:
10,000rpm @ 7.2V
approx 8amps max
No-load current: 0.680 amps
Stall Current: ~19 ampsV
Diameter: 27.6mm
Length: 38.1mm
Shaft: 2.3mm diameter
Solder Terminals
We
recommend using the Sprite-25
speed controller for this motor, or the AUX channel of your small robot speed controller
