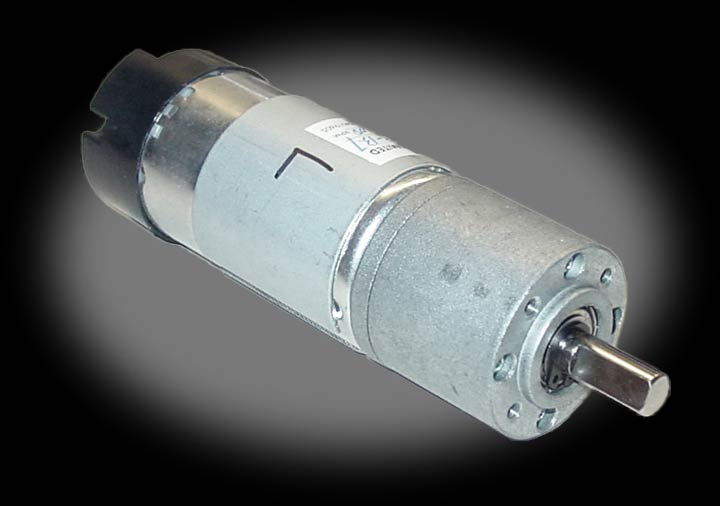

0-RENMOT-L Renegade Motor, Low Power <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Renegade Encoded Planetary Gear Motors were made to provide the lowest possible power consumption and duty cycle. These are default motors used in the OS Bots Renegade bases. They are designed to be run at 12V. Each motor comes with a 8" cord that plugs into the motor for encoder and power input (connector has .1" standard header spacing)</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Temperature </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">-10&deg; to 60&deg; C </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">&#8804; 140mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load Speed </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">219 RPM </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">121 oz-in</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max. Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">69.4 oz-in</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rated Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">&#8804; 800mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rated Load Speed </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">160 RPM </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Power </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.9W</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">18mm long, 7mm diameter at the flat </font></td>
</tr>
</table>
