0-PS-1000W-24V AmpFlow 24V 42A Power Supply
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">AmpFlow motors and controllers can be used in industrial machinery or other stationary applications with our high-current power supplies. Connect these units to 110 or 220 Volts AC household power and they will supply 5, 12, 24, 36, or 48 volts DC for use with AmpFlow motors.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Every power supply goes through a full-load burn-in test so no defective unit leaves the factory. The built-in fan turns on automatically when the unit gets warm and the power supply shuts down temporarily if the temperature, current, or voltage go beyond the safe operating range. And short-circuit and overload protections helps these units survive harsh operating conditions.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These high-efficiency power supplies have an output voltage that is adjustable by plus or minus 10%. And they include an EMI filter to minimize interference with radio signals, and a soft-start circuit that reduces the AC inrush current peaks.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This big 24 Volt, 40 Amp, 1000 Watt power supply can deliver enough current to get all AmpFlow motors operating at, or near, their points of peak efficiency. If even higher power is required, all the 1000W power supplies have special provisions to enable them to run in parallel with several other units so any level of power can be achieved. </font></p>

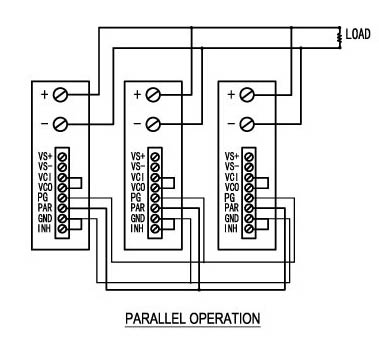

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">If more than 40A is required, the big 1000 Watt power supplies can be wired together in parallel to provide higher current. Here is a schematic showing the required connections: <a href="images/0-PS-1000W-24V_parallel.jpg">Parallel Operation</a>.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DC Voltage Output </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">AC Voltage Input </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">110/220</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Amps Output </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">42 amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Watts Output </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1000 watts </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">13 x 5.3 x 2.7 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 lbs </font></td>
</tr>
</table>

AmpFlow 24V 42A Power Supply
These high-efficiency power supplies have an output voltage that is adjustable by plus or minus 10%.

$249.00
Robot MarketPlace - AmpFlow 24V 42A Power Supply

Electronics
    Power Supplies

AmpFlow 24V 42A Power Supply
Part# 0-PS-1000W-24V
