0-PRB2314 40A Waterproof Speed Controller with Reverse <p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Key Features</font><br>
<font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reverse operation for more maneuverability<br>
Completely sealed to operate even when wet<br>
Automatic setup - no programming required<br>
Anodized aluminum case</font><br>
<br>
<font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Overview</font><br>
<font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Pro Boat's waterproof marine electronic speed control is definitely one
of the best values in model boating. Anyone can upgrade their RTR boat
from a mechanical speed control to the precision of a fully proportional ESC
with reverse. The unit's completely potted electronics are sealed in epoxy and encased in
a blue anodized aluminum shell that keeps operating temps cool. In addition
to being inexpensive and waterproof, no programming is required. Set up is
as simple as turning on the transmitter, turning on the receiver and moving
the throttle to full forward, then full reverse. The speed control automatically
memorizes the initial movements and provides proportional control between the
extremes.</font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><br>
<font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Forward: Yes<br>
Reverse: Yes<br>
Channels: 1<br>
Continuous Maximum Current: 50amps forward, 20amps reverse<br>
Input Voltage: 4-10 cells (4.8-12 V)<br>
Input Connector Types: Tamiya<br>
Output Connector Types: Bullet<br>
Motor Limit: 15 turns<br>
Dimensions (WxLxH): 42 x 47 x 13 mm<br>
Weight: 3.1 oz (89 g)<br>
BEC Voltage: 6.0VDC 1 amp. Max.<br>
PWM Frequency: 1000 Hz.<br>
Full On Resistance: 0.070 ohms</font></p>

40A Waterproof Speed Controller with Reverse
This ECS is fully sealed in epoxy to keep out water. A blue anodized aluminum keeps operating temperatures cool.

$39.99
Robot MarketPlace - 40A Waterproof Speed Controller with Reverse

Electronics
    Small Single-Channel Speed Controllers

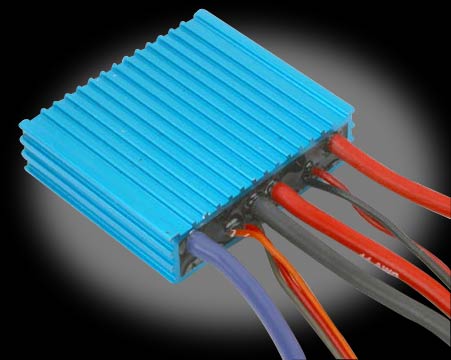

Click photo to enlarge.

40A Waterproof Speed Controller with Reverse
Part# 0-PRB2314
