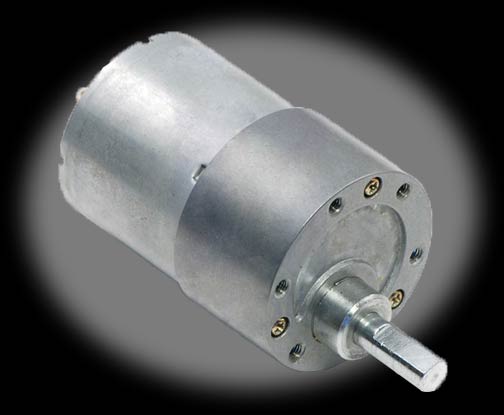

0-PL1103 29:1 Metal Gearmotor 37D x 52L mm <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This 2.05" x 1.45" x 1.45" gearmotor is a powerful, high-quality motor with 29:1 metal gearbox intended for operation at 12V. These units have a 0.61"-long, 6 mm-diameter D-shaped output shaft. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These motors are intended for use at 12V, though the motor can begin rotating at voltages as low as 1V.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Gearmotor Dimensions:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm apart.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">37D x 52L mm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.7 oz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 mm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15.5 mm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Ratio </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">29:1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Free-run Speed at 6V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">175 rpm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Free-run Current at 6V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">250 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current at 6V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2500 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque at 6V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">55 oz-in </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Free-run Speed at 12V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">350 rpm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Free-run Current at 12V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">300 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current at 12V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5000 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque at 12V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">110 oz-in </font></td>
</tr>
</table>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Key specs at 12 V: 350 RPM and 300 mA free-run, 110 oz-in (8 kg-cm) and 5 A stall.</font></p>
$24.95
