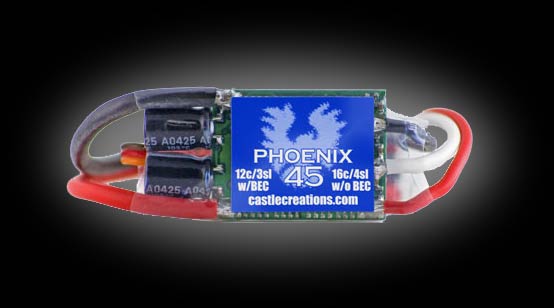

0-PHX45 Phoenix 45 Brushless Speed Controller <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Phoenix-45 sensorless control is an excellent choice for higher power applications.
This controller has the same programmable features as its smaller cousins.
Additonally, the Phoenix-45 features an adjustable switching rate for optimum
efficiency. </font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Key Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
-Low-voltage cutoff - 4V, 5V, 6V, 7.2V, 9V, 12V <br>

-Over-current Protection - 5 settings<br>
-Brake type - 5 settings<br>
-Throttle range - fixed/self-adjusting/governor<br>
-Timing Advance - 3 choices<br>
-Cutoff type - hard or soft<br>
-Switching frequency - 3 choices</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">45A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">19.2V max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.72in. (43.7mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.95in. (24.1mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.40in. (10.2mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1 oz. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.6V max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Full On Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0026 ohms</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells with BEC </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3S LiPo; 12S NiMH/NiCad </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells without BEC </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5S LiPo; 16S NiMH/NiCad </font></td>
</tr>
</table>
