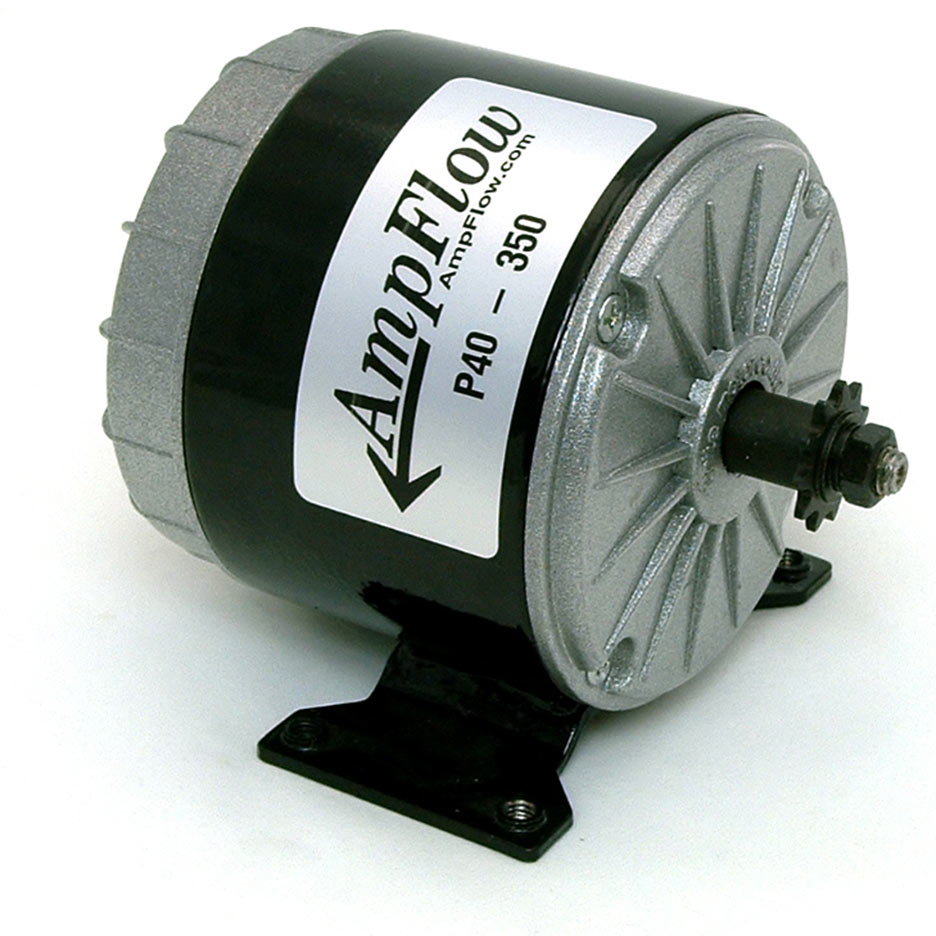

0-P40-350 AmpFlow P40-350 Pancake Motor
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These pancake motors are designed to give good performance and great value in tight spaces. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The P40-350 motors work great for applications that require sustained power output of up to 350 Watts (0.47 horsepower). </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These motors are ideal for cost-sensitive applications including robots, motorized scooters, go karts, and electric bicycles.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Watts - Continuous </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">350</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.0 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.3 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Efficiency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">79%</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No-Load RPM @ 24V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3500</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Shaft </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11-Tooth #25 Sprocket</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.6 lb </font></td>
</tr>
</table>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The above specifications are for 24V. The motors can also be used at 12V or 18V. The RPM is proportional to the voltage so running at 12V will result in half the no-load RPM that is shown above for 24V. The lower voltage also reduces the maximum achievable torque by 50%. The motors have also been tested and used at higher voltages resulting in higher RPM, torque, and power. Shorter duty-cycles are recommended for higher voltages to allow the motors time to cool.</font></p>

AmpFlow P40-350 Pancake Motor
The P40-350 motors work great for applications that require sustained power output of up to 350 Watts (0.47 horsepower).

$53.00
Robot MarketPlace - AmpFlow P40-350 Pancake Motor

Motors
    AmpFlow Pancake Motors

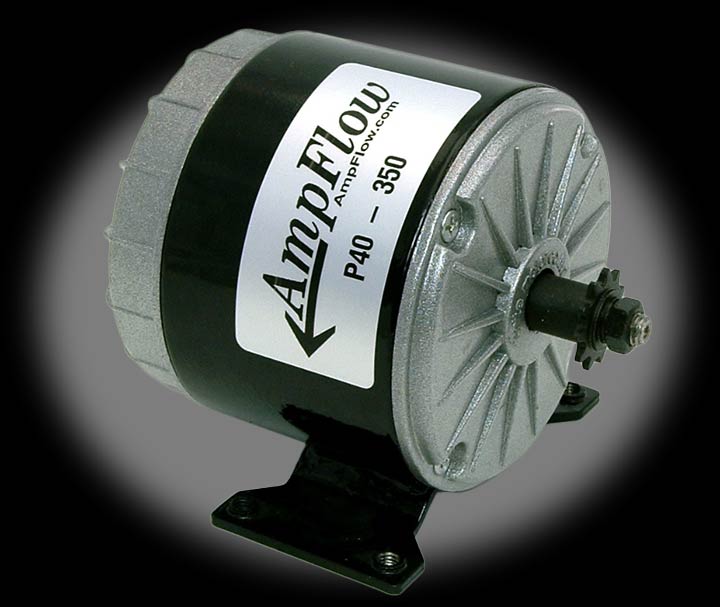

Click photo to enlarge.

AmpFlow P40-350 Pancake Motor
Part# 0-P40-350
