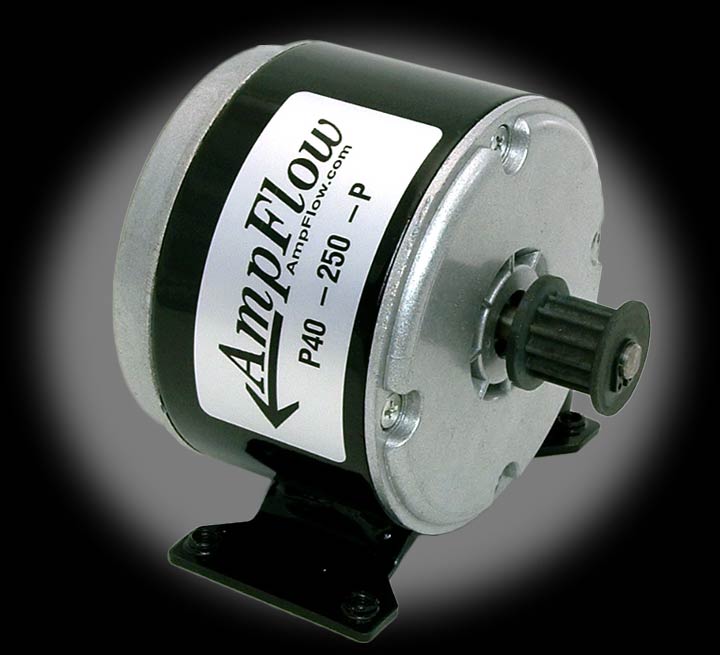

0-P40-250-P AmpFlow P40-250-P Pancake Motor
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These pancake motors are designed to give good performance and great value in tight spaces. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The smaller P40-250 motors have sustained outputs of 250 Watts (0.34 horsepower). These are available with either a sprocket or pulley.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These motors are ideal for cost-sensitive applications including robots, motorized scooters, go karts, and electric bicycles.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Watts - Continuous </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">250</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.0 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.2 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Efficiency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">78%</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No-Load RPM @ 24V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3400</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Shaft </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">13-Tooth, 5mm Pitch Pulley</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.2 lb </font></td>
</tr>
</table>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The above specifications are for 24V. The motors can also be used at 12V or 18V. The RPM is proportional to the voltage so running at 12V will result in half the no-load RPM that is shown above for 24V. The lower voltage also reduces the maximum achievable torque by 50%. The motors have also been tested and used at higher voltages resulting in higher RPM, torque, and power. Shorter duty-cycles are recommended for higher voltages to allow the motors time to cool.</font></p>

AmpFlow P40-250-P Pancake Motor
These motors are ideal for cost-sensitive applications including robots, motorized scooters, go karts, and electric bicycles.

$45.00
Robot MarketPlace - AmpFlow P40-250-P Pancake Motor

Motors
    AmpFlow Pancake Motors


Click photo to enlarge.

AmpFlow P40-250-P Pancake Motor
Part# 0-P40-250-P




Please see this product on the new Robot MarketPlace web site. Click here
