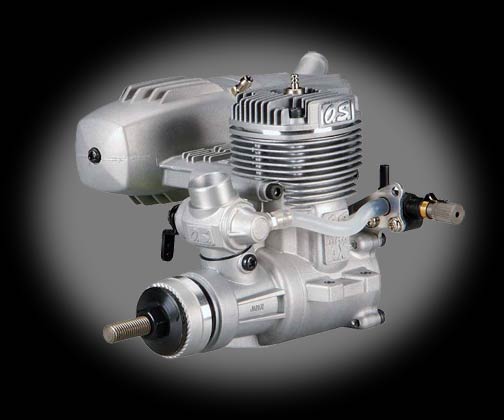

Robot MarketPlace - OS Engines 46AX Max

As the replacement for the high-performance 46FX, it's no wonder that the .46 AX shares many of its features. The raw power. A remote needle valve. Mounting bolt patterns. A balanced "D"-cut crankshaft supported by dual bearings. CNC-machining for the piston and other parts. And the same exclusive ABL cylinder liner that has made FX reliability a byword. But all the same, the 46AX is a different Ð and better Ð engine. Why? Because times change and technology advances. And because O.S. uses the best of both to make a good engine a better engine.

Feautres
-Features the 46FX's durable ABL (Advanced Bimetallic Liner) plating, as well as a new design that automatically centers, levels and seats the head during re-replacement. Head snugs down with only four screws Ð not six.
-Subtly tapered low-end needle eliminates surging at transition, ensuring exceptionally smooth, consistent throttle control from idle to top speed.
-Redesigned liner ports and a ball-milled inlet port minimize turbulence during fuel/air mixing, making combustion and power output more predictable.
-New high-speed needle bracket simplifies horizontal/vertical mounting Ð and can be replaced in just minutes.
-Minimizes vibration-induced "creep" and re-sets with a ratchet spring on the high-speed needle and seals on both needles. A simple rotor guide screw replaces the throttle stop screw Ð and eliminates spring-related movement.
-Includes a new low-noise E-3070 muffler and 2-year limited warranty protection.
-Includes a lock nut and longer crankshaft with more thread length, for better prop nut engagement and greater pilot safety.

Specs
Displacement: 0.455 cu in (7.45cc)
Bore: 0.866" (22mm)
Stroke: 0.772" (19.6mm)
Practical RPM: 2000-17000
Power Output: 1.65ps/16000 RPM
Weight: 13.2oz (375g) without muffler
Weight: 17.2oz (489g) with muffler
Recommended Propellers: 10.5x6, 11x6-8, 12x6-7, use 10x6 for break-in
Crankshaft Size: 1/4-28

Distance from remote needle to end of crankshaft: 4.7" (119.4mm)
Distance from center of engine to drive hub: 2.4" (61mm)
Distance from center of engine to end of crankshaft: 3.4" (87.6mm)
Distance/crankshaft center to muffler exhaust outlet: 3.9" (100.5mm)
Height from crankcase bottom to top of cylinder head: 3.3" (85.2mm)
Height/crankshaft center to top of cylinder head: 2.6" (67.4mm)
Width including mounting ears: 2" (50.8mm)
Width not including mounting ears: 1.4" (35.6mm)
Width between mounting holes same side: .69" (17.5mm)
Width between mounting holes opposite side: 1.7" (44mm)
Diameter of muffler body: 1.5" (38.1mm)
Angle of muffler in relation to engine: 4 degrees
