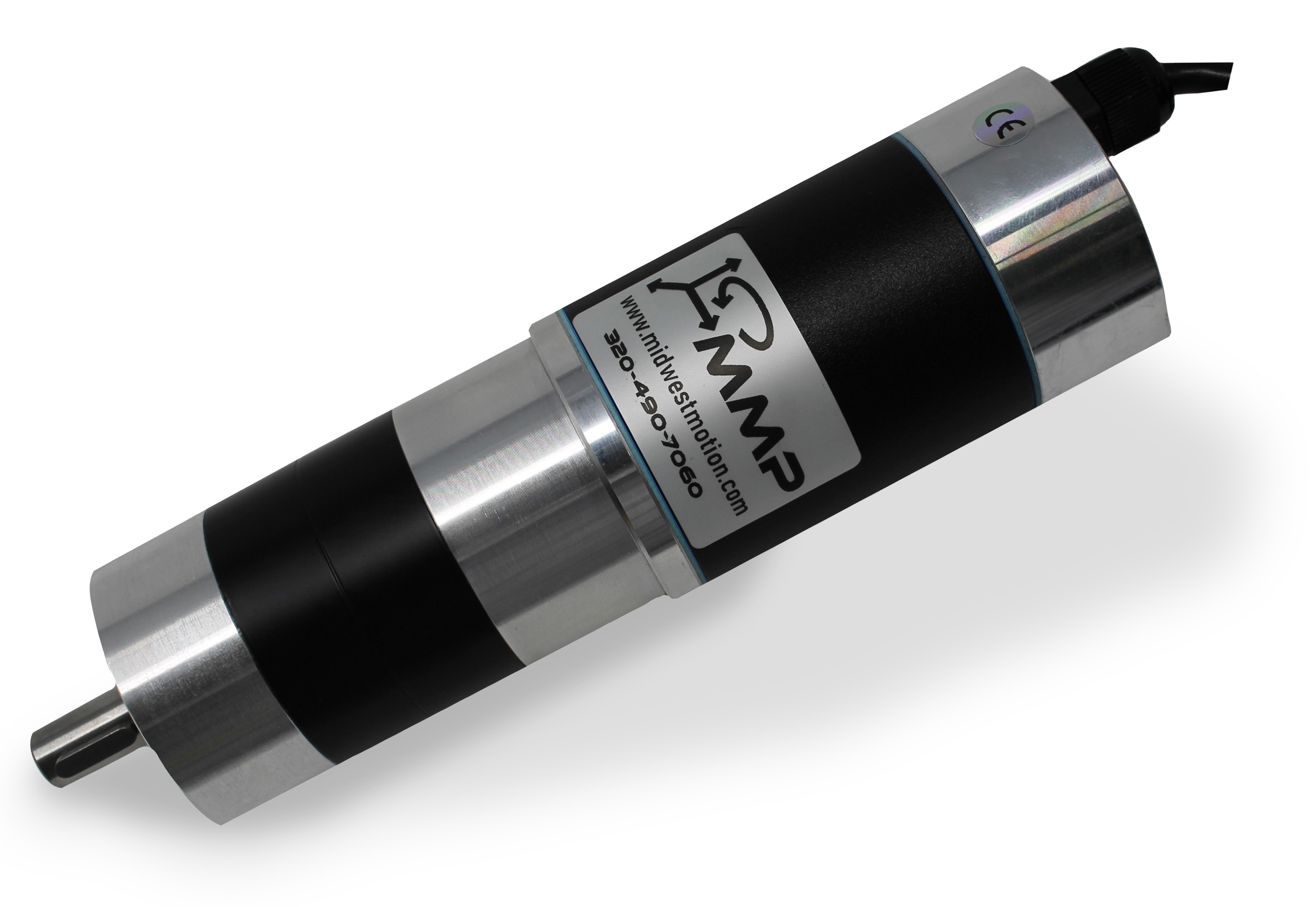

MMP-TM57 Geared Motors
These are super high quality gearmotors from Midwest Motion Products. They will outperform almost any other motors we sell, and are manufactured right here in the USA. There are many gear ratios available (made with all steel gears) to pair with 12V, 24V, or 48V motors.

$259.99

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
3.7	1189	5	70

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
7	652	8	70

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
14	320	16	212

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
29	152	34	212

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
46	97	53	212

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
100	44	109	443

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
124	35	136	443

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
195	23	214	443

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
236	19	258	443

Quick Specs:

Gear Reduction	RPM at Load	Rated Continuous Torque (in-lb)	Rated Peak Torque (in-lb)
308	14	336	443

Midwest Motion Products makes extremely high quality geared motors, manufactured here in the United States of America. They are robust, reliable, and will outperform almost any other motor we sell.

The TM57 line of motors is made with a precision planetary gearhead and all steel gears. The gearhead is available with ten different gear ratios ranging from 3.7:1 to 308:1. The brushed motor is totally enclosed with no ventilation and uses powerful ferrite magnets to deliver maximum performance while keeping costs resonable. The motor is available in 12V, 24V, and 48V versions, each with identical speed and torque at the motor's nominal voltage. See this chart for a quick comparison of the gear ratios.
