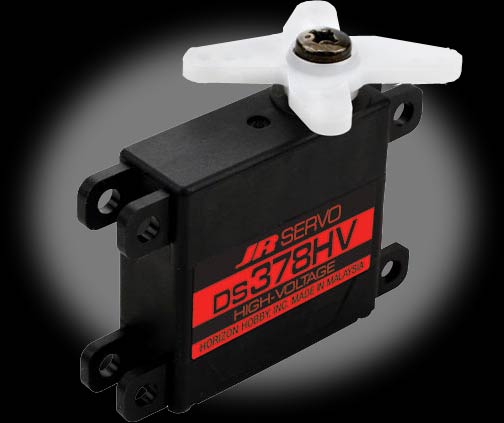

0-JRPS378HV JR DS378HV High Voltage Digital MG Thin Wing Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The DS378HV offers the superb holding torque, minimal dead band and high resolution of JR digital technology in a package that's ideal for high-performance aircraft. Its impressive 75 oz-in of available torque is sure to withstand higher demanding applications. Features such as the 11mm wide case design, metal geartrain, and ability to use 2S Li-Po batteries without a regulator with simpler set up for better performance makes this servo top notch.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Designed for 2S Li-Po operation<br />
11mm wide case design offers a thin servo for easy installation<br />
Metal geartrain provides durability and longevity<br />
Proven JR precision for accuracy and performance<br />
High Speed for better performance</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Category</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Specialty</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">75 oz-in </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.13 sec/60deg </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.14in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.43in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.18in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.7 oz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bushing or Bearing </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dual Bearing</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.4V (2S LiPo battery) </font></td>
</tr>
</table>
