Robot MarketPlace - Hydra 3-Channel H-Bridge Speed Controller

The Robot Power Hydra is a small low-cost high-performance triple channel H-bridge speed controller for small robots, and other electrical loads. It is designed for ant and beetle weight combat robots, R2D2 replicas, sumo robots, and other small robots such as firefighting robots, maze solvers and carpet rovers. The Hydra is also suitable to drive pneumatic valves, solenoids, relays and thermoelectric coolers.

The Hydra is designed to pack the highest power handling capability, flexibility of control and usability options into the smallest package.

Features

Size: 2.0" x 2.1" x .5"
Weight: 28.0 grams
Standard R/C pulse format
6.0V to 28V battery voltage
6.5A continuous (8A peak) current on each channel.
Fully reversible H-bridge design. Equal power handling in both directions on all three channels.
Full current limiting and over temp limiting. This thing is nearly blow proof! Motors and batteries are protected from dead short conditions.
Two channels may be either mixed (throttle/steering) or separately controlled. Ideal for skid steer vehicles/robots.
Limit switch inputs to stop motion (AUX channel only) in one direction when closed. Motion is allowed in the other direction.
Indicator LED for speed and direction of motor on each channel
Status LED status information and mode indications
Receiver battery eliminator circuit (BEC) standard - may be disabled. This can provide up to 100 mA of current at 5V to the RC receiver and other attached electronic circuits.
Failsafe shuts off motors if R/C signal is lost
Calibrate function to match unit to radio signal range. Settings retained in EEPROM non-volatile storage.
FLASH-based microcontroller with upgradeable software via in-circuit programming header
Ceramic oscillator (crystal) for stable operation at all temperatures
Capable of supporting I2C or serial command streams. Serial not supported by stock R/C software but user may replace the stock code if desired. Contact us if you would like to discuss custom software for your application.

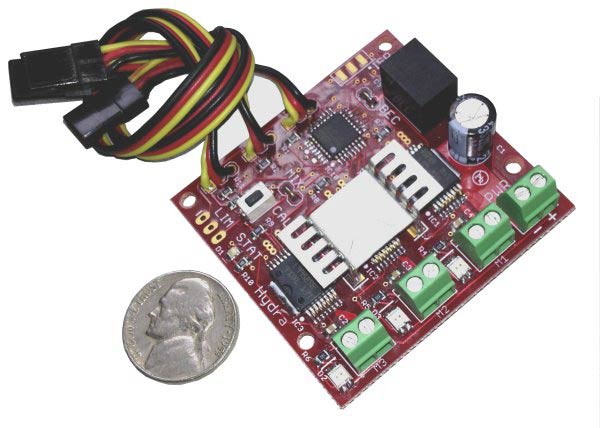

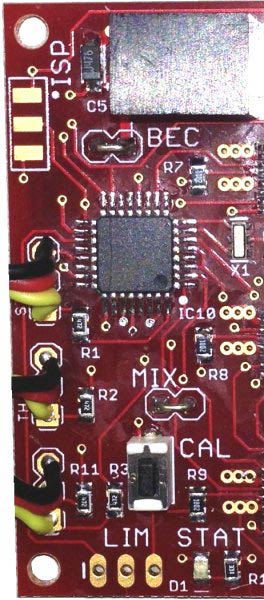

Hydra Controls

BEC loop may be clipped to disconnect on-board 5V regulator from RC cables
MIX loop intact configures Mix-mode, clipped gives separate control of Channel 1 and 2
CAL button controls radio calibration mode.
LIM connector allows limit switches to be connected to control motion of Channel 3
STAT LED indicates unit operating status and error conditions
