0-HRC28410 Hitec Optima 6 6-Channel 2.4GHz Receiver <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Optima 6 is the smallest and least expensive 2.4GHz receiver. Built on the same foundation as the Optima 7 without the full telemetry features, the Optima 6 is 20% smaller and weighs in at just slightly over a half an ounce, making it perfect for smaller aircraft.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Adaptive Frequency Hopping Spread Spectrum Technology (AFHSS)</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
This 2.4GHz system utilizes the latest AFHSS technology and the exclusive Smart Scan system to ensure a rock solid, interference free connection between the transmitter and receiver. When selected, Hitec's 2.4GHz SmartScan function scans the 2.4GHz spectrum to find the cleanest channels in which to operate therefore providing interference free operation even in the most crowded environments.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Boosted Omni Directional Antenna (BODA)</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
The Optima 2.4GHz line of receivers feature exclusive BODA receiver technology. Independent testing has proven that the single BODA antenna system in the 6 & 7 channel systems is equal to or better than other dual antenna systems</font></p>
<ul>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Boosted Omni-Directional Antenna (BODA) System </font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">SmartScan Mode Selectable </font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Basic Telemetry Function : RX Low Battery Warning </font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Range Check Mode (Reduced output to approx. 30M range) </font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fail-safe/Hold Function</font></li>
</ul>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.8 x 0.84 x 0.48 in. (46 x 21.4 x 12.1mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.52oz (15g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.8-7.4V from receiver battery power or ESC<br />
4.8-35V using SPC function</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max. Current Consumption </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">190mA</font></td>
</tr>
</table>

Hitec Optima 6 6-Channel 2.4GHz Receiver
The Optima 6 is the smallest and least expensive 2.4GHz receiver.

$52.99
Robot MarketPlace - Hitec Optima 6 6-Channel 2.4GHz Receiver

RC Gear
    RC Receivers - 2.4Ghz


Click photo to enlarge.

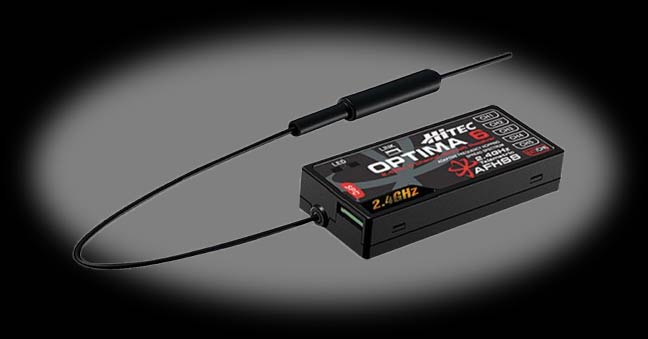

Hitec Optima 6 6-Channel 2.4GHz Receiver
Part# 0-HRC28410




Please see this product on the new Robot MarketPlace web site. Click here
