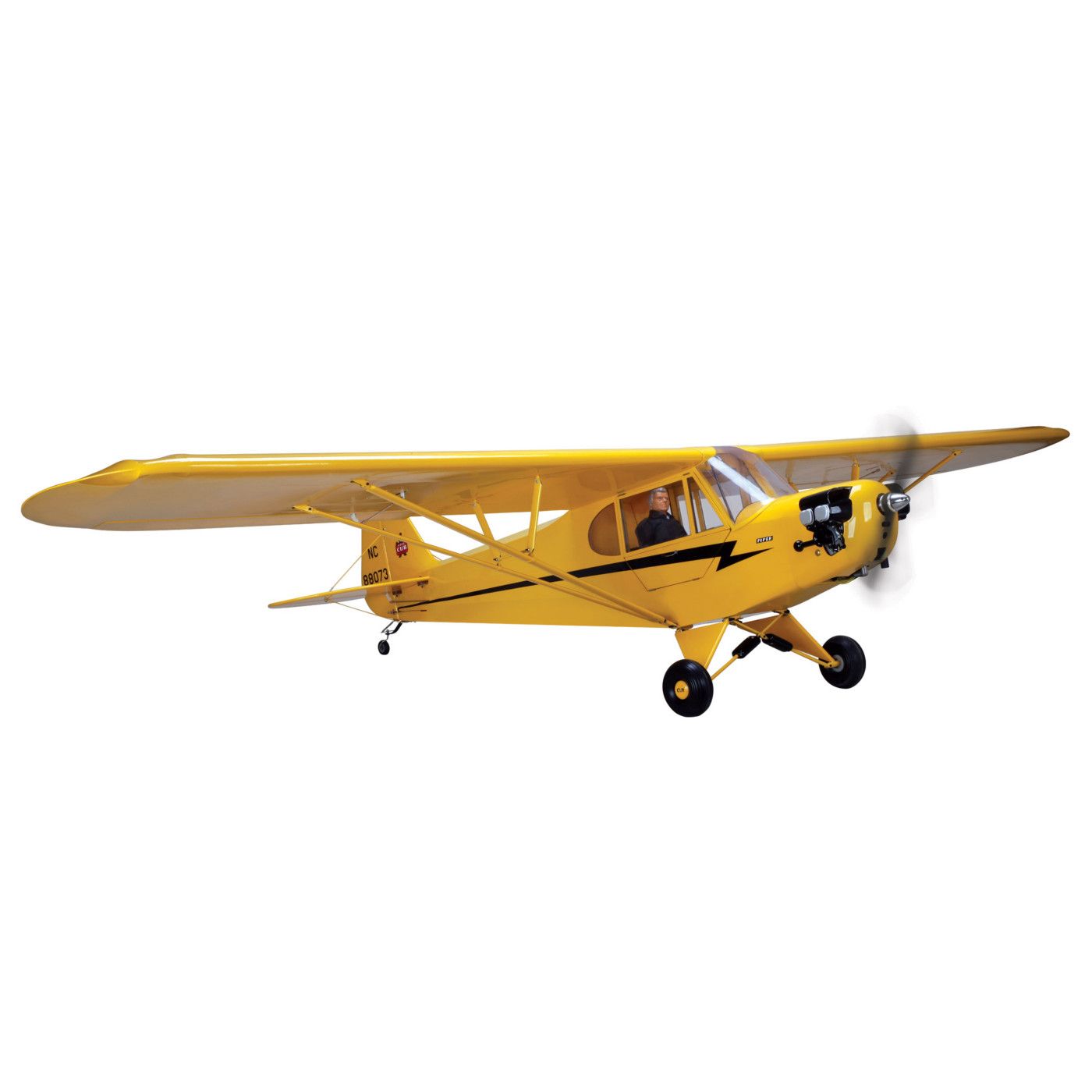

Hangar 9 1/4-Scale J-3 Cub ARF
Hangar 9's giant 1/4 Scale Piper J-3 Cub ARF is an incredibly accurate replica designed with the scale admirer in mind.

$579.99

Large scale air enthusiast will marvel at the Hangar 9 giant-scale, super detailed J-3 Cub. The Cub is perfect for a first-time large scale flight experience because of its smooth flight characteristics.

Hangar 9 has thought of just about everything to make this 1/4-scale Cub an incredibly accurate replica of the ever-popular Piper J-3 Cub. Right down to the scale dash with Piper Cub emblem in the tachometer, this is the large scale beauty designed with the scale admirer in mind. Scale enthusiasts will appreciate the more realistic Cub outline facilitated by simulated scale tubular construction of the top fuselage contour. Likewise, the scale fin-to-fuselage fillet molding echoes its full-scale counterpart. The scale Cub wheels and working landing gear facilitate easier landings, touch-and-go excitement and one-wheel arrivals.

Scale fanatics will be astonished by the full-bodied pilot figure that is not only of accurate scale but is also posable. The operating door panels offer easy access to the interior of the plane and interior seating locks to the cockpit floor yet is also removable; both also contribute to the scale realism of the full-size Cub.

Besides the unparalleled scale detail, you also get smart design features like collapsible wing struts that are connected to the wing with a pivoting pin and keeper, while a pin and cotter key system allows the struts to be removed from the fuselage without hassle. The 2-piece stab can also be removed if necessary.

The J-3 Cub can also be transformed by luxury of gas-and-go by adding a Zenoah G20ei engine (ZENE20EI).

Features
Full-bodied, posable pilot figure
Scale dash including Cub in tachometer
Scale Cub wheels and functioning landing gear
Operating door panels and removable interior seating for easy access to the plane's interior
Collapsible wing struts connected to wing and fuselage with an intelligent pin and cotter key system
Tubular construction for top outline more true-to-Cub scale lines
Scale fin to fuselage fillet
Covered in genuine Hangar 9� UltraCote�

Wingspan:	106 in (269 cm)
Overall Length:	68 in (172.7 cm)
Wing Area:	1630 sq in (150.2 sq dm)
Flying Weight:	14.5–16.5 lb (6.6–7.5 kg)
Engine Size:	1.00–1.60 2-stroke; 1.20–1.80 4-stroke; 20–26cc gas
Motor Size:	E-flite Power 110 Brushless Outrunner
Radio:	4 to 6 channels
Servos:	6 JR Hi-Torque (JRPS821) digital servos
Trim Scheme Colors:	Cub Yellow (HANU884) & Black (HANU874)
CG (center of gravity):	4 ¾ to 5 inches from the leading edge of the wing at fuselage
Wing Loading:	21.73 oz/sq ft
Prop Size:	15x8–16x6 for gas; 14x6–16x4 for 2-stroke; 16x6–18x6 for 4-stroke; 19x8E for electric
Spinner Size:	8mm x 1.25
Recommended Battery:	4S 4000 - 5000mAh Li-Po, 2 required for electric conversion
Aileron:	5/8 in—up; 1/2 in—down
Elevator:	7/8 in—up/down
Rudder:	1 ½ in—left/right
Scale:	25%
