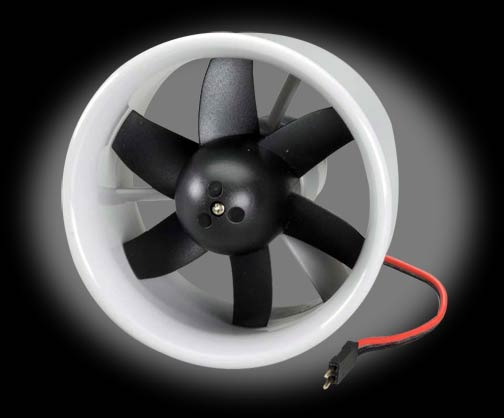

0-GWSG4020 GWS EDF64A w/ 300H Motor <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
High efficiency, high output, ultra-light, high speed, pre-assembled unit with duct, fan, motor and connector<br />
Operates on 7.2, 8.4, 9.6 or 10.8V<br />
EP2540x6 size dynamic fan<br />
EM300H motor
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="5"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td>&nbsp;</td>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">7.2V</font></div></td>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">8.4V</font></div></td>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">9.6V</font></div></td>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">10.8V</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Amps</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.6A</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.7A</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.6A</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.7A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thrust</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.69oz (133g) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.89oz (167g) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.70oz (190g) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.69oz (218g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power (W) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">33.12</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">47.88</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">63.36</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">83.16</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Efficiency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.14oz/w (4.02g/w) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.12oz/w (3.39g/w) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.11oz/w (3.00g/w) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.09oz/w (2.62g/w) </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fan Diameter </font></td>
<td colspan="3"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5in. (63.5mm) </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter of Outer Lip of Duct Opening </font></td>
<td colspan="3"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.03in. (77mm) </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter of Duct </font></td>
<td colspan="3"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.63in. (67mm) </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Distance from Rear of Motor to Propeller </font></td>
<td colspan="3"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.6in. (66mm) </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Duct Depth </font></td>
<td colspan="3"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.63in. (41.5mm) </font></td>
</tr>
</table>
