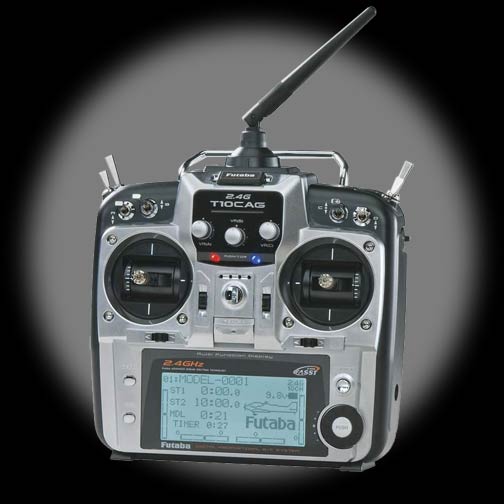

0-FUTK9255 Futaba 10CAG 2.4GHz Integrated R6014HS Air Mode 2 <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The 10CG is perfect for the price-conscious pilot -- an integrated, 2.4GHz treasure trove of features formerly found only on the most advanced Futaba systems. But it's also a system that boasts advantages few others can claim: 7-point throttle and pitch curves; 4 heli flight modes; a round dozen factory-defined glider mixes; graphics for programming swash plate types; swash ring; and logic switches that allow you to activate a timer or other function just by changing the positions of specific sticks or switches.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This airplane version which will default to airplane settings,
with mode 2 stick operation when powered up and has a ratcheted throttle stick.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Futaba's FASST (Futaba Advanced Spread Spectrum Technology) shifts very quickly virtually eliminating signal conficts and interruptions unlike other 2.4GHz systems that only stay on one or two frequencies<br />
Dual antenna diversity enables FASST system to automatically and seamlessly select the best reception between the two antennas built into the receiver ensuring that the aircraft stays under constant control of transmitter regardless of altitude<br />
7 point throttle and pitch curves<br />
12 factory defined glider mixes<br />
Logic switches allows timer activation or other function just by changing positions of specific sticks or switches<br />
15-model memory, expandable to 48 models with optional 128K CAMPac module <br />
10-character model and user naming<br />
Assignable switches and dials/functions<br />
2 proportional slider switches<br />
Model select, copy, reset<br />
Fail-safe, sub trims, servo reversing and EPA<br />
160 x 72 backlit LCD with adjustable contrast<br />
Servo monitor display<br />
Auxilliary channel screen for 1-step function/switch assignment</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">R6014HS Receiver</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
True, 14-channel design<br />
Designed specifically for FASST 2.4GHz systems<br />
Push-button Easy-Link feature locks receiver to the transmitter's unique signal<br />
Includes battery failsafe with auto cut-off and setup LED.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Transmitter Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Power Supply: 9.6V NT8S700B NiCd battery<br />
<font color="cccccc">Receiver Specs</font><br />
Receiving Frequency: 2.4GHz<br />
Power Requirement: 4.8 - 6V<br />
Current Drain: 70mA<br />
Size: 2.06 x 1.48 x 0.63" (52.3 x 37.5 x 16.0mm)<br />
Weight: 0.72oz (20.8g)</font></p>
