Robot MarketPlace - FingerTech Motor Mount (pair)

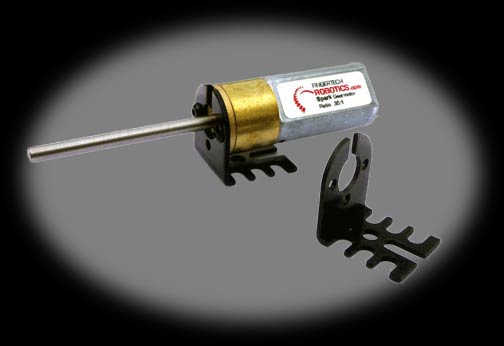

These anodized aluminum motor mounts will fit just about any small motor with mounting hole distances from 10mm - 12.5mm (0.39 - 0.49in). Especially suited to both Gold and Silver Spark motors, they will also hold all "Mini Metal Gearmotors", small Copal motors, Maxon motors, etc.

Seven different mounting slots will fit up to 3mm or 4-40 sized screws.
Width: 16mm (0.63in)
Height: 19.8mm (0.78in)
Length: 18.6mm (0.73in)
Thickness: 1.45mm (0.057in)
Shaft height: A motor with 11mm hole spacing will raise the motor shaft up to 11.7mm (0.46in).
Only 1.5grams (0.05oz) each!

Motor sold seperately.

Click here to add your own review or comment for this product.

8/30/2011

Seth

These mounts are not made for heavier combat, as they are formed sheet metal. For a more robust mount, I'd recommend the aluminum block mounts, and in a higher weight robot, the ones with bearings in them.

http://www.robotmarketplace.com/products/0-PB-M0031.html for non-bearing

http://www.robotmarketplace.com/products/0-PB-M0031-BB.html for with bearing

8/28/2011

Ellliott

Not my favorite

Im not crazy about these mounts for my 3 lb battle bot. Although Very easy to use, they are lightweight and bend to easy. The base for mounting is small and you have to remove the motor to remove the mount from what it's mounted to. I would pay more if the would include the screws to mount the motor to it.
