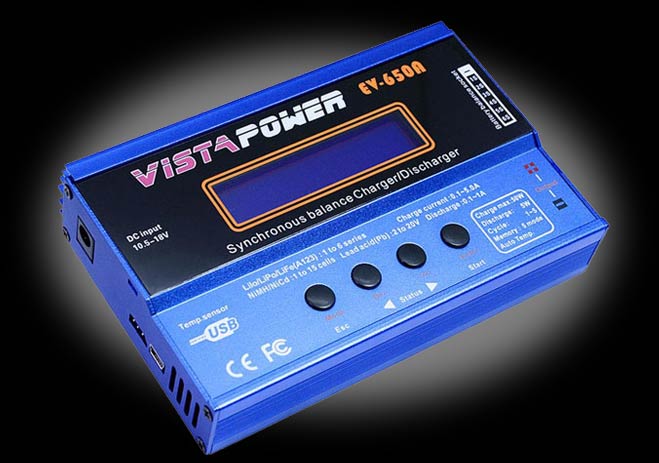

0-EV650A Vista Power EV-650 DC Charger <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Charge: auto charge, balance charge, and fast charge for lithium battery<br />
Discharge<br />
Lithium batteries storage charge is always 3.75V/cell - 3.85V/cell<br />
Cycle: discharge>charge, charge>discharge<br />
Save/load 5 battery data <br />
USB connection, monitor battery pack on PC<br />
Temperature probe connection, temperature cut off (0-80degC)<br />
Delta peak (NiMH/NiCd) 5-20mV (default: NiMH-7mV, NiCd-12mV)<br />
Safety timer: 10-720 minutes (default: 120min)<br />
Capacity cut-off: 10-20000mAh<br />
Input power low cut-off: below 10.0V<br />
Back light adjustable: 0%-100%<br />
Beep on/off (default: ON)</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Input voltage: 11-18.0V<br />
Charge power: 50W<br />
Discharge power: 5W<br />
Discharge current range: 0.1-1.0A<br />
Charge current range: 0.1-5.0A<br />
Current drain for balancing LiPo: 250mAh/cell<br />
Data store: max.5 data of batteries<br />
NiCd/NiMH battery cell count: 1 - 15 cells<br />
LiPo/LiLo/LiFe battery cell count: 1 - 6 cells<br />
Pb Battery Voltage: 2V-20V<br />
Weight: 260g<br />
Dimensions: 130 x 85 x 26mm</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">In the Box</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
EVP-650A Charger with removable DC Input Power Cord<br />
(1) JST-XH Balance board <br />
Graphing Software Kit with USB Cable<br />
Various battery connector power leads (includes 1 blank)<br />
Instruction manual</font></p>
