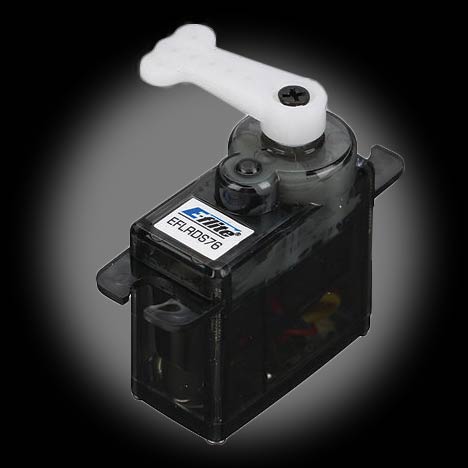

0-EFLRDS76 E-Flite 7.6-Gram DS76 Digital Sub-Micro Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital high speed, high torque, precise centering servo is perfect for electric, park flyer, and high-performance 3D models, micro and mini electric helicopters, hand launch gliders. Replacement servo for the Blade 450 3D Heli.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Application: Sub-micro and Micro-sized airplanes and helis<br />
Current Draw Idle: 27mA @ 4.8V<br />
Current Draw Stall: 473mA @ 4.8V<br />
Gear Type: Plastic<br />
Height: 0.96 in (24.0mm)<br />
Length: 0.90 in (23.0mm)<br />
Motor Type: Coreless<br />
Servo Type: Digital<br />
Servo Voltage: 4.8 - 6.0V<br />
Size Category: Minis and Micros<br />
Speed: 0.11 sec/60deg @ 4.8V; 0.09 sec/60deg @ 6.0V<br />
Speed (at 4.8V): .10 - .14 sec<br />
Torque: 24.2 oz-in (1.75kg-cm) @ 4.8V; 28.0 oz-in (2.00kg-cm) @ 6.0V<br />
Torque (at 4.8V): 20 - 39 oz-in<br />
Weight: 0.27 oz (7.6 g)<br />
Width: 0.45 in (11.5mm)</font></p>
