0-EFLM4032A EFL-32-770 Power 32 Brushless Outrunner Motor <p><font face="Arial, Helvetica, sans-serif"><font color="#00FF66" size="2">The Power 32 is designed to deliver clean and quiet power for 30-36-size sport and scale airplanes weighing 3.5-6 pounds, 25 to 36-size 3D airplanes up to 4.5 pounds, or models requiring up to 700 watts of power. </font></font></p>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="136"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td width="183"><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Brushless Outrunner </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Replacement for 30-32 size glow engines </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Bearins or Brushings </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Ball Bearings </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">11x7 to 14x10 </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">12-16.8</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">770</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.2 ohms </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Idle Current</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">2.40A at 10V </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.20 in (5mm)</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.90 in (50mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">200g (7.0 oz) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.70 in (42mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Wire Gauge </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">14</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">42A</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">60A for 15 seconds </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">3-4S LiPoly or 10-14 NiCad/NiMh </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Speed Control </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">60A Brushless </font></div></td>
</tr>
</table>
<font color="#00FF66"><font face="Arial, Helvetica, sans-serif">
</font><br>
<font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font>
<br>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">60A Brushless ESC </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">11x7 to 14x10 Prop </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">3-4S LiPoly or 10-14 NiCad/NiMh </font></td>
</tr>
</table>

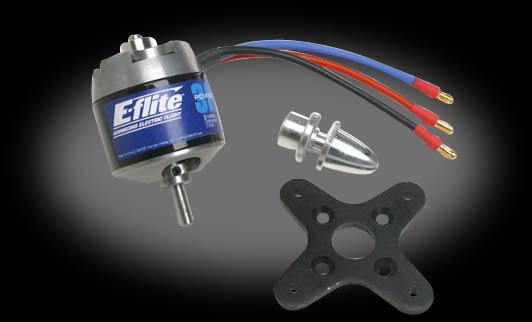

EFL-32-770 Power 32 Brushless Outrunner Motor
The Power 32 is designed to deliver clean and quiet power for 30-36-size sport and scale airplanes weighing 3.5-6 pounds, 25 to 36-size 3D airplanes up to 4.5 pounds, or models requiring up to 700 watts of power.

$74.99
Robot MarketPlace - EFL-32-770 Power 32 Brushless Outrunner Motor

Motors
    Motors - Brushless


Click photo to enlarge.

EFL-32-770 Power 32 Brushless Outrunner Motor
Part# 0-EFLM4032A




Please see this product on the new Robot MarketPlace web site. Click here









Other products you may be interested in:
Phoenix 60 Brushless Speed Controller
