0-EFLM1150 EFL-300-1380 Park 300 Brushless Outrunner Motor <p><font face="Arial, Helvetica, sans-serif"><font color="#00FF66" size="2">Ideal for 3D models 6-9 ounces and sport and scale models 8-12 ounces, or models requiring up to 85 watts of power.</font></font></p>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="136"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td width="183"><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Brushless Outrunner </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">180-280 replacement </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Bearins or Brushings </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Ball Bearings </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">6x5 to 8x3.8 (3 cells) or up to 10x3.8 (2 cells) slow flyer </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">7.2-11.1</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1380</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.33 ohms </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Idle Current</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.40A at 8V </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.125 in (3.17mm)</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.90 in (22mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">24g (0.8 oz) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.10 in (28mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">7A</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">9A for 15 seconds </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">2-3S LiPoly or 6-10 NiCad/NiMh </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Speed Control </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">8-10A Brushless </font></div></td>
</tr>
</table>
<font color="#00FF66"><font face="Arial, Helvetica, sans-serif">
</font><br>
<font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font>
<br>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">8-10A Brushless ESC </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">6x5 to 8x3.8 (3 cells) or up to 10x3.8 (2 cells) slow flyer </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">2-3S LiPoly or 6-10 NiCad/NiMh</font></td>
</tr>
</table>

EFL-300-1380 Park 300 Brushless Outrunner Motor
Ideal for 3D models 6-9 ounces and sport and scale models 8-12 ounces, or models requiring up to 85 watts of power.

$37.99
Robot MarketPlace - EFL-300-1380 Park 300 Brushless Outrunner Motor

Motors
    Motors - Brushless

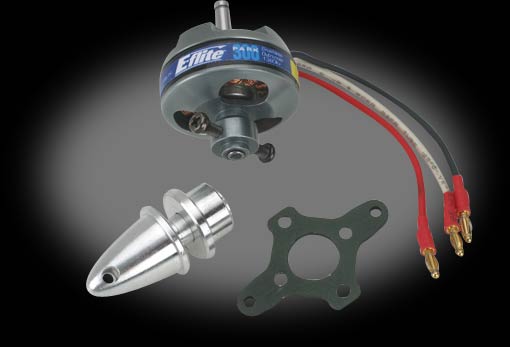

Click photo to enlarge.

EFL-300-1380 Park 300 Brushless Outrunner Motor
Part# 0-EFLM1150




Please see this product on the new Robot MarketPlace web site. Click here
