0-EFLM1000 EFL-370-4100 Inrunner Brushless Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushless
motors are becoming more and more popular for people who need to
cram an insane amount of power in a small package, so why do they
cost so much? Well, now there is a line of inexpensive yet powerful
brushless motors where you get a LOT more than you pay for.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The EFL-370
motor package <a href="htttp://robotcombat.com/products/images/store_efl_accessories_lg.jpg">includes
several extras</a>: The motor, an adapter ring, 10T pinion (removable),
fasteners, prop adapter, and gold-plated connectors. </font></p>
<table width="250" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Part
Number </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">EFLM1000</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7.2 - 21.6 V </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4100
rpm per V <br>
(almost 50,000 at 12V!)</font></p>
</td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Current</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2-5A nominal, 6A max. </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.787&quot; (20mm) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.18&quot; (30mm) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.68oz (47.6g) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft size </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2mm</font></td>
</tr>
</table>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
motors require special Brushless controllers to work properly, we
highly recommend combining this motor with our <a href="0-PHX10.html">Phoenix-10
controller</a>.</font></p>

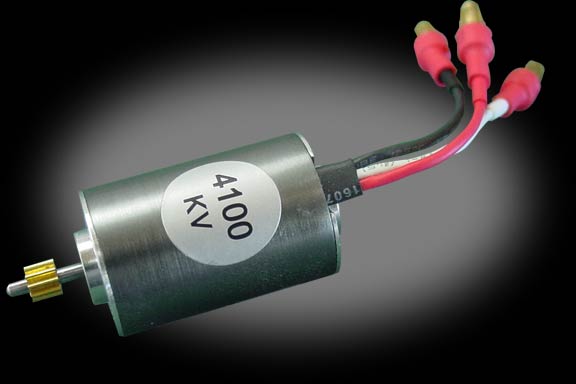

EFL-370-4100 Inrunner Brushless Motor
Highly recommended for use with the Phoenix-10 controller.

$37.99
Robot MarketPlace - EFL-370-4100 Inrunner Brushless Motor

Motors
    Motors - Brushless


Click photo to enlarge.

EFL-370-4100 Inrunner Brushless Motor
Part# 0-EFLM1000




Please see this product on the new Robot MarketPlace web site. Click here
