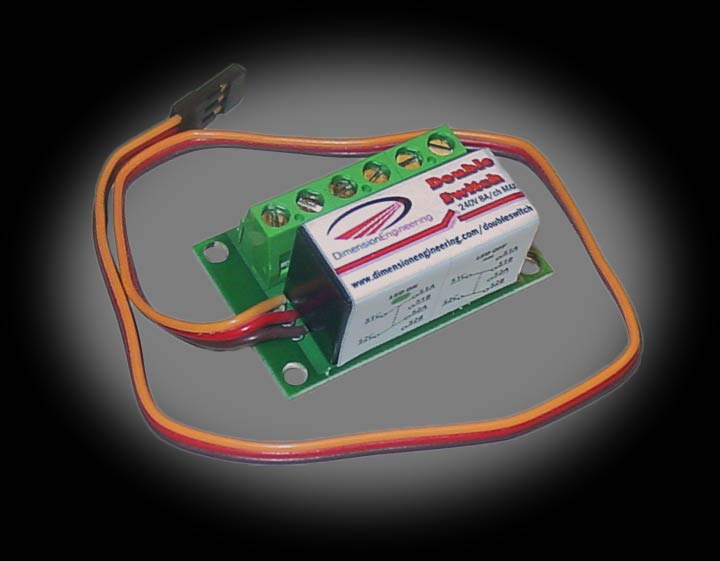

Robot MarketPlace - DoubleSwitch Radio Controlled Dual 8A Relay

DoubleSwitch is a doubled version of the popular BattleSwitch. DoubleSwitch is a relay switch that you toggle via hobby radio control gear. You can use DoubleSwitch to quickly and easily control glow plugs, BattleBot weaponry and more. You can activate applications with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

DoubleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the loads that you want to toggle using DoubleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relays by moving your radio's control stick up or down, left or right, or another method you desire.

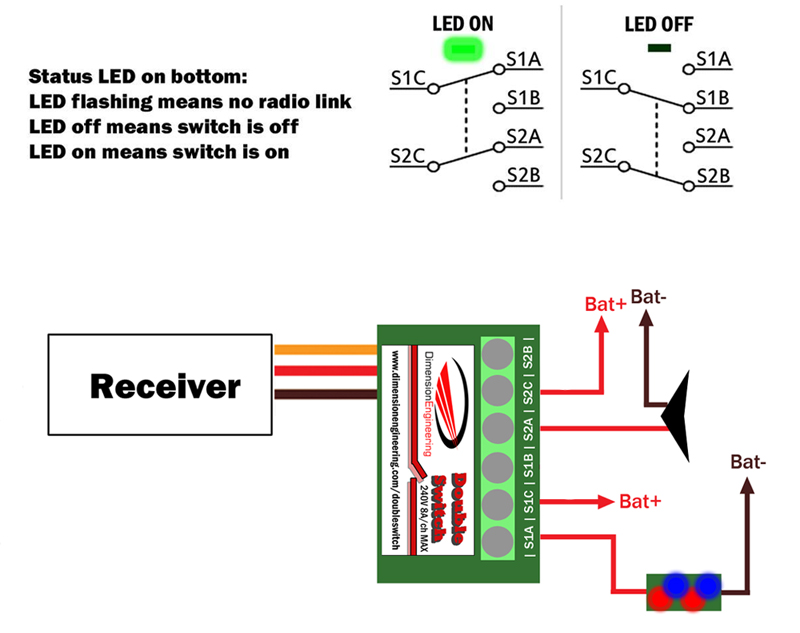

DoubleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a double pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

DoubleSwitch does not supply power at the screw terminals.

Specs
Max. Relay Voltage	240VAC
Max. Relay Current	8A at 12VDC, 8A at 240VAC
Relay Resistance	100 mΩ max
Operating Voltage (on servo pigtail)	3.5V to 5.5V
Receiver Draw	typically 40mA
Dimensions	1.65 x 1.0 x 0.72 in. (42 x 26 x 18mm)
Weight	0.8oz (23g)

Click here to add your own review or comment for this product.

5/21/2013

Ken

Double Switch

The Double Switch is very well made and has a small footprint. I use it to change the direction of a small motor drawing about 6/7 amps, and it performs with no issues from my Futaba 2.4G receiver. Connecting up to it is a dream with good quality screw connectors and a led status indicator. Mounting is easy with double-sided tape or screws. The electronic equipment in my model is neatly laid out, and aesthetically, the Double Switch fits in very well.
