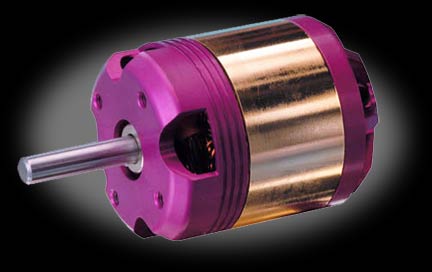

Cyclon 60 Brushless Outrunner Motor
Part# 0-CYLOR60

The power of each Cyclon outrunner is in its name, making it easy to find the right motor for your application. And because Cyclon motors were the first to offer a reversible shaft that can be mounted on either side of the motor, they're perfect for a wide variety of other models too.

Specs:
Type: Brushless Outrunner
Bearings or Bushings: Ball Bearings
Recommended Prop Range: 13x7 to 17x10
RPM/Volt (Kv): 660
Resistance (Ri): .036 Ohms
Idle Current (Io): 1.2A @ 6V
Maximum Burst Current: 45A (900 watts)
Cells: 3-6 Li-Po / 10-20 Ni-Cd/Ni-MH
Speed Control: 35-45 A Brushless
Weight: 235g (8.3 oz)
Overall Diameter: 44mm (1.7 in)
Shaft Diameter: 5mm (0.2 in)
Overall Length: 48mm (1.9 in)
