Motors
        Motors - Brushless


Click photo to enlarge, double-click to shrink.

$65.99
QTY
Stock Status: Available


Manual:

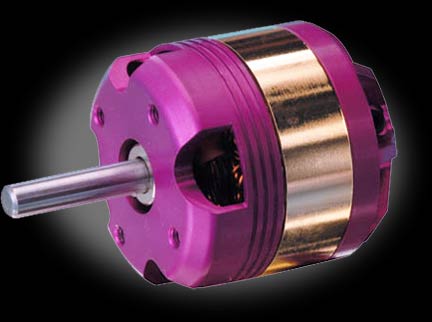

Cyclon 40 Brushless Outrunner Motor
Part# 0-CYLOR40

The power of each Cyclon outrunner is in its name, making it easy to find the right motor for your application. And because Cyclon motors were the first to offer a reversible shaft that can be mounted on either side of the motor, they're perfect for a wide variety of other models too.

Specs:
Type: Brushless Outrunner
Bearings or Bushings: Ball Bearings
Recommended Prop Range: 10x5 to 14x8
RPM/Volt (Kv): 1100
Resistance (Ri): .03 Ohms
Idle Current (Io): 1.5A @ 6V
Maximum Burst Current: 45A (600 watts)
Cells: 2-5 Li-Po / 7-14 Ni-Cd/Ni-MH
Speed Control: 35-45A Brushless
Weight: 175g (6.2 oz)
Overall Diameter: 44mm (1.7 in)
Shaft Diameter: 5mm (0.2 in)
Overall Length: 43mm (1.7 in)
