Motors
        Motors - Brushless


Click photo to enlarge, double-click to shrink.

$55.99
QTY
Stock Status: Available


Manual:

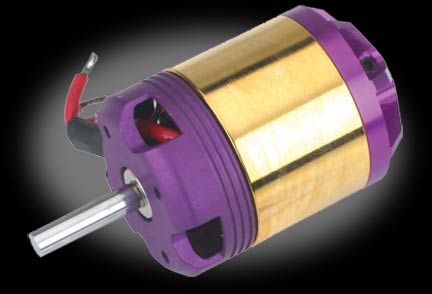

Cyclon 30 Brushless Outrunner Motor
Part# 0-CYLOR30

The power of each Cyclon outrunner is in its name, making it easy to find the right motor for your application. The Cyclon 20 and Cyclon 30 are for very narrow fuselages and are perfect for electric gliders. And because Cyclon motors were the first to offer a reversible shaft that can be mounted on either side of the motor, they're perfect for a wide variety of other models too.

Specs:
Type: Brushless Outrunner
Bearings or Bushings: Bearings
Recommended Prop Range: 11x6 to 13x7
RPM/Volt (Kv): 960
Resistance (Ri): 0.042 Ohms
Idle Current (Io): 1.6A @ 6V
Maximum Burst Current: 35A (420 watts)
Cells: 2-3 Li-Po; 7-12 Ni-Cd/Ni-MH
Speed Control: 35-40A Brushless
Weight: 150g (5.3oz)
Overall Diameter: 36mm (1.4 in)
Shaft Diameter: 5mm (0.2 in)
Overall Length: 53mm (2.1 in)
