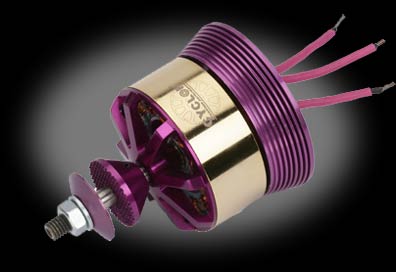

The power of each Cyclon outrunner is in its name, making it easy to find the
right motor for your application. And because Cyclon
motors were the first to offer a reversible shaft that can be mounted on
either side of the motor, they're perfect for a wide variety of other models
too.
Specs:
Type: Brushless Outrunner
Bearings or Bushings: Ball Bearings
Recommended Prop Range: 20x13 to 21x12
RPM/Volt (Kv): 195
Resistance (Ri): 0.060 Ohms
Idle Current (Io): 1.0A @ 6V
Maximum Burst Current: 60A (2000 watts)
Cells: 8-12 Li-Po / 26-36 Ni-Cd/Ni-MH
Speed Control: 60-80A Brushless
Weight: 400g (14.1 oz)
Overall Diameter: 65mm (2.6 in)
Shaft Diameter: 8mm (0.3 in)
Overall Length: 73mm (2.9 in)
|
