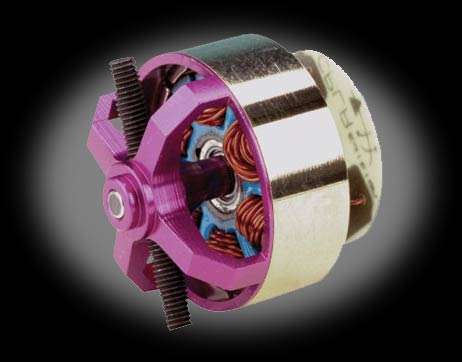

0-CYLCPLR05 Cyclon Micro CPLR Brushless Outrunner Motor with CF Tube <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These outrunner motors provide maximum power and minimum weight--a power-to-weight ratio, in fact, far above existing direct-drive motors in the range. Works on 2-3S Lipo and turn up to 9/4,7 Prop (3 lipo) for small models, Park Flyers or big indoor models. 3D models fly superbly up to 500 grams, and 1000 grams for standard flying. Power from 50 to 150 Watts, weight 45 grams.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushless Outrunner </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8x6 to 9x4.7 (for 2S Li-Po); 7x4 to 8x4.3 (for 3S Li-Po)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1480</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Resistance (Ri) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.250 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Idle Current (Io) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.46A @ 6V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10A (100 watts) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2-3S LiPo </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed Control </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8-10A Brushless </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Built-in Prop Saver </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">26mm (1.0in) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">30mm (1.2in) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">25g (0.9oz) </font></td>
</tr>
</table>
