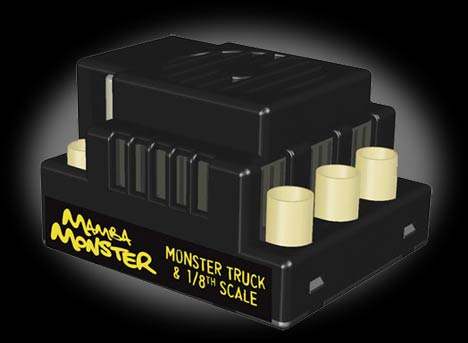

0-CSEMMBMONSTER Mamba Monster Brushless Extreme ESC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This ESC can handle up to 6S LiPoly (25V). It comes with
switching BEC on board so that you can use the BEC even with the 25V input.
Gold-plated 6.5mm bullet connectors looks great and handle the power flowing
through this controller. Built-in cooling fans help keep the controller cool
when things start heating up on the track.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Programming Options-like the rest of Castle's controllers, the following
Mamba Monster settings can be changed with the transmitter: </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">-Low battery voltage cut-off warning <br>
-Brake strength <br>
-Lockout reverse mode <br>
-Timing adjustment <br>
-Start-up mode <br>
-Reverse speed</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Mamba Monster ESC is Castle Link™ compatible too - drivers can use their
Castle Link and a Windows PC to tune and tweak additonal settings, such as:</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">-Throttle response curve <br>
-Brake response curve <br>
-Saved profile setup files <br>
-Punch control <br>
-Separate brake strength <br>
-Separate reverse power</font></p>
<table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>

<tr>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Cells</font></div></td>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">18 NiCad/NiMH; 6S LiPoly</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Continuous Amps</font></div></td>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">120A</font></div></td>
</tr>
<tr>
<td> <div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Forward</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Yes</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Reverse </font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Yes</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Brake</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Yes</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Time
Delay Brake</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Yes</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Input
Voltage</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">25V</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Input
Connector Type</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">6.5mm
bullet</font></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Output
Connector Type</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">6.5mm
bullet</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.2
x 1.9 x 1.4 in.</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Full
on Resistance</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.0003ohms
per phase</font></div></td>
</tr>
</tbody>
</table>
