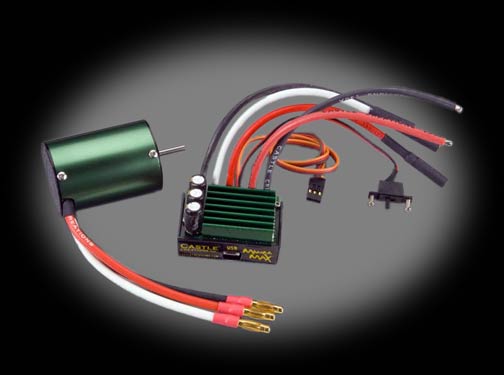

0-CSEC1805 Castle Creations 1/10 Mamba Max + 4600 kV Combo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This setup is great for 2 wheel drive vehicles on short tight tracks where acceleration and torque are required (not for use with 4 wheel drive vehicles on short courses).
</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">ESC Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Profiles can be custom designed on a PC (NOTE-not compatible with Windows Vista 64bit, only compatible with Vista 32bit and XP)<br />
Castle Link compatible using a standard USB/Mini cable (sold separately)<br />
Infinitely adjustable throttle and brake curves with timing advance<br />
Punch Control allows dialing in horsepower where needed<br />
Brake Strength allows straight tracking under hard braking<br />
Drag Brake helps entry into corners<br />
Start Power for smooth launches<br />
Programmable cutoff voltage for LiPo usage </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Motor Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Oversize ABEC-1 front and rear bearings<br />
4mm gold connectors<br />
Roughly equivalent in top speed to a very good 12T Brushed motor on 6 cells</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">ESC Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-12 NiCad/NiMH; 2-3 LiPo </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.0003 Ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Proportional</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes, with lockout </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Voltage Cut-Off</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Programmable</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.9 x 1.3 x 1.2in. (48 x 33 x 30mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5oz (70.9g) </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">CMS-4600 Motor Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12 cell NiCad/NiMH, 3 cell LiPo max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.4in. (35mm) diameter x 1.7in. (43mm) length </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7oz (198.4g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/8in. (3.2mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearings</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Oversized ABEC-1 front and rear </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Connectors</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4mm gold </font></td>
</tr>
</table>
