0-COPAL50-SH COPAL SH50 50:1 Gearmotor <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
little motor takes the Copal line another step further with its all-metal
gears at a ratio of 50 to 1. We've tested this motor extensively,
and were extremely impressed at it's performance.</font><font color="00ff66"></p>
</font><p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Note
that this motor's gearbox is exposed, so it's best for use in a bot
where it is enclosed. If you need to, you could wrap a layer of thin
CF or foil around the gearbox if you're worried about grit getting
inside. Prewired with about 4in. long leads.</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.8-14.8V</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Speed:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">300rpm
@ 12V</font><font color="00ff66"><br>
<font size="2" face="Arial, Helvetica, sans-serif">150rpm
@ 6V</font></font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque: </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">58.9
oz-in (4241 g-cm) @ 12V<br>
48.43 oz-in (3487 g-cm) @ 6V </font></div></td>
</tr>
<tr>

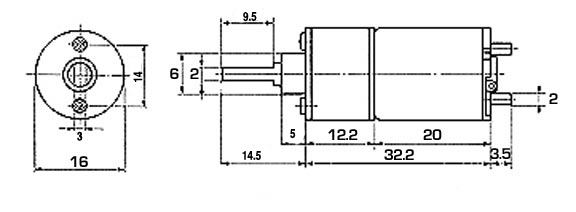

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.46&quot; (32.2 mm) long,
5/8&quot; (16mm) diameter</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.8oz (22.7g) </font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Ratio:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal
Spur gear 50:1</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current: </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall at 1.5a</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Info: </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4mm
diameter with 2 flats; 9.5mm long</font></div></td>
</tr>
</table>

COPAL SH50 50:1 Gearmotor
A small, and powerful drive motor. Metal gears and a 6V motor.

$20.99
Robot MarketPlace - COPAL SH50 50:1 Gearmotor

Motors
    Small Geared Motors

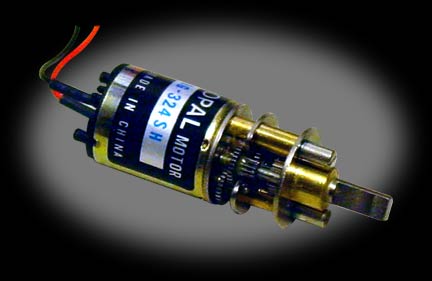

Click photo to enlarge.

COPAL SH50 50:1 Gearmotor
Part# 0-COPAL50-SH



(average customer rating)

Was: $26.99

Our Price:

$20.99

QTY
Stock Status: In Stock
