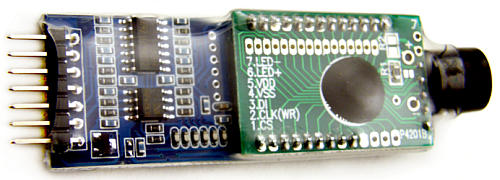

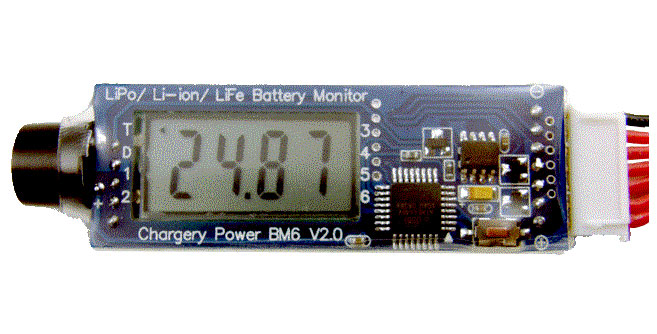

0-BM6 BM6 1-6S Lipo Battery Monitor <p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Chargery Power BM6 Battery Monitor is a high accurate Li-Po / Li-Ion / LiFe battery tool. It can be used in Charge, Discharge, On Board Low Voltage Alarm or as a battery checking tool at the flying field or in the workshop. Anywhere, anytime you can monitor the cell voltage and battery balance status.
The unit includes reverse polarity detection, and displaying the voltage of each cell within the pack, the packs overall voltage and difference of cells voltage. It will also give an indication as to how charged (or discharged) the battery pack is.
BM6 gives a warning buzzer when the Lipoly cell voltage reaches below 2.00V or any voltage you set, or over 4.22V.
In flight, BM6 can alarm loudly when any cell voltage less than the voltage you set. Before you fly, please press the button setup the lowest cell voltage range between 2.000-4.200V.
</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br />
Battery range: 2S-6S Lipo and LiFe<br />
Voltage display resolution: 0.001V<br />
Voltage Detection precision: 0.005V<br />
Cell Voltage display range: 1.50~4.99V<br />
Total Voltage display range : 3.00~29.94V<br />
Over discharge Alarm cell voltage: 2.00~4.00V<br />
Over charge Alarm cell voltage: > 4.22V<br />
Current loading of test: 8mA<br />
Pins distance: 2.54mm<br />
Size: 80 x 25 x 12mm <br />
Weight: 12g</font></p>
