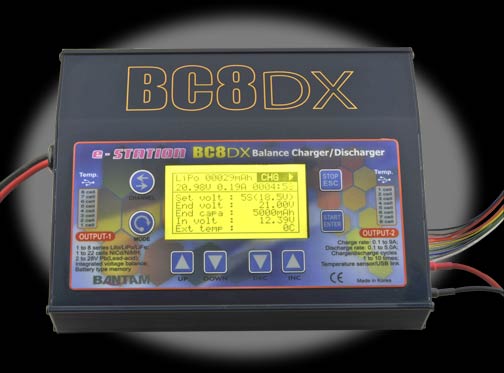

0-BC08DX Bantam e-Station BC8DX Charger with EAC134 Adapter Boards <p> <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The BC8DX is the most advanced and versatile charger that Bantam has created to date. It can charge and balance two 8S Lipo batteries at the same, with 160W of power available from each of its dual charging outputs.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The BC8DX can also handle all your needs for charging and discharging NiMH, Nicad and lead acid batteries.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Each BC8DX includes two <a href="0-BAN-EAC134.html">Bantam BC8DX CSRC/Align/E-Flite Style Balancing Adapter Board</a>. Be sure to select an additional adapter board if needed so you can take advantage of this charger&rsquo;s balancing function.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11V-18V DC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Idling Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Approx 100mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Charge/Discharge Power </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">max 160/25W per output </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of NiCad/NiMH cells </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-22 cells </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of LiIon/LiPo/LiFe cells </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-8 cells </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Pb Battery Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2-28V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Charge Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.1 - 9.0A </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Discharge Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.1 - 5.0A </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of cycles </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Up to 10 times </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery Data Memories </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Up to 5 data per battery type </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery Capacity Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100-65000mAh</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Delta-peak Sensitivity </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Zero, 5-20mV adjustable </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Trickle Charge Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Off, 5-300mAh adjustable </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Drain in Balancer </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">200mA/cell</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">960g</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">160 x 120 x 40 mm </font></td>
</tr>
</table>

Download software here:
Bantam Software Manual
Software Guide for Windows XP
Software Guide for Windows Vista 32
