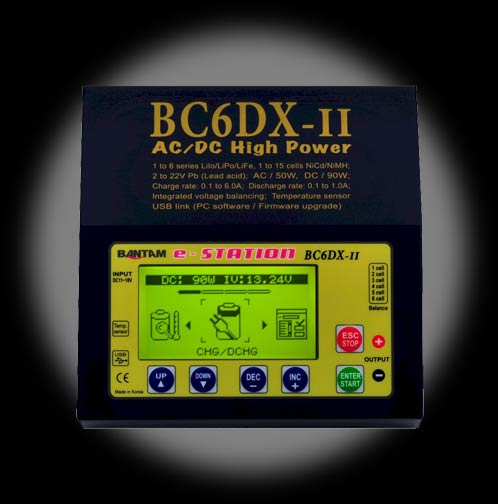

Robot MarketPlace - Bantam e-Station BC6DX-II AC/DC Balancing Charger with EAC124 Adapter Board

Each BC6DX includes one Bantam E-Station CSRC/Align/E-Flite Style Balancing Adapter Board. Be sure to select an additional adapter board if needed so you can take advantage of this charger’s balancing function.

Dual Input Power
BC6DX-II employs a circuit that can be operated at AC (Alternating Current) or DC (Direct Current) input power. On AC power the charger�s maximum output power is 50W charging. With DC power input, the charger�s maximum output power is 90W. As a result, it can charge up to 15 cells of NiCd/NiMH and 6 series of Lithium batteries. There may be the limit of feeding current to a higher voltage battery. Please refer 'Maximum circuit power chart'.

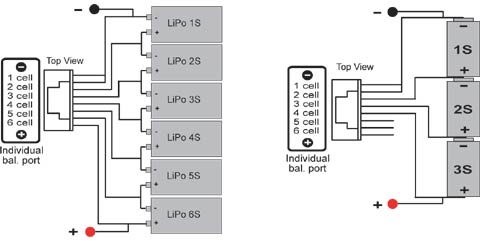

Individual voltage balancer for Lithium batteries built in
The BC6DX-II has an individual-cell-voltage balancer built in. So it does not need an external balancer when charging Lithium batteries (LiIo/LiPo/LiFe) for cell balancing.

Balance individual cells on discharge
The BC6DX-II also can monitor and balance individual cells on Lithium batteries during the discharge process. If the voltage of any one cell varies abnormally, the process will be stopped with an error message.

Accept various types of Lithium chemistries
The BC6DX-II can accept three types of Lithium batteries - LiIo, LiPo and LiFe. They have different characteristics by their chemistry.

Lithium battery 'Fast' and 'Storage' mode
'Fast' charge reduces the charging time of Lithium batteries and 'Storage mode controls the final voltage of the battery for long time storage.

Data store/load
Up to 10 data memories. Each memory can be recalled at any time you need without reprogramming.

Cyclic charging/discharging
Perform 1 to 10 cycles of charge>discharge or discharge>charge continually for battery refreshing and balancing.

PC based analysis using USB communication
For advanced users, the BC6DX offers an optional FREE PC-based program that can analyze your battery via a USB connection. It shows a graph of voltage, current, capacity and temperature curves. It also shows the individual voltage of each cell in your pack. The USB Module and Cable Kit is required.

Specs
Input Voltage	11V-18V DC AC 100-240V (50/60Hz)
Circuit Power	Charge: Max. 50W at AC; 90W at DC input Discharge: Max. 5W at AC/DC input
Number of LiPo/LiIon/LiFe Cells	1-6 cells
Number of NiCad/NiMH Cells	1-15 cells
Pb Battery Voltage	2-22V
Charge Current	0.1 - 6.0 amps
Discharge Current	0.1 - 1.0 amps
Number of Cycles	1 - 10 times
Battery Data Memory	Up to 10 data
Weight	670g
Dimension	140 x 130 x 45 mm
