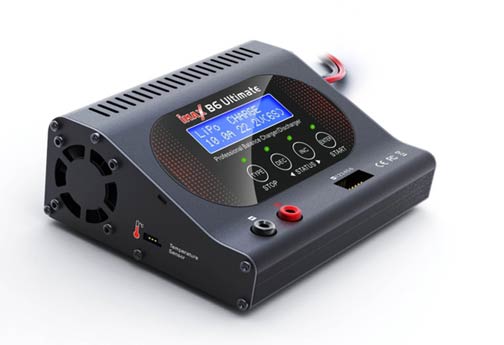

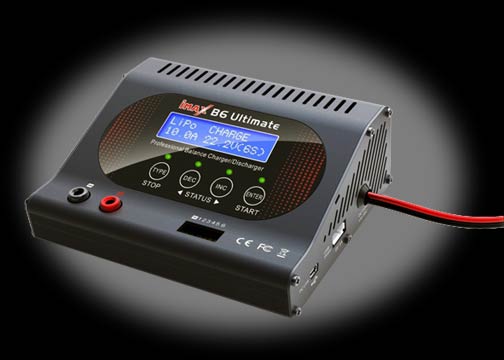

Powerful microprocessor controlled rapid charger for NiCd/NiMH/LiPo/LiIon/LiFe/Pb batteries. The maximum charge power is 200W and maximum charge current is 10A. Comes complete with temperature probe to safely monitor charge temps and terminate charging if temperature exceeds set parameters.
Charger monitor program disc is included and the USB cable to connect the charger to your computer allowing the user PC based analysis of the charge process and the health of their battery packs. NOTE: When balance charging Lithium batteries, both the balance tap and the main power wires must be connected to the charger.
The balance port connection pins are set at 2.5mm pin spacing and you can balance any pack that has a 2.5mm spacing balance connector, without using an adapter.
Dimensions: 6" x 4-1/2" x 2-1/8".
Specs
Operating Voltage Range: 11-18V DC
Circuit power: Max charge power 200W, Max discharge power 25W
Charging current range: 0.1A -10A
Discharge current range: 0.1A-5.0A
Current drain for balancing: 200mA/cell
LiPo/LiFe/LiIon Cell Count: 1-6 cells
NiMH/MiCd: 1-18 cells
Pb charging: 2V-24V
USB Port: 5V 1A continuous
Weight: 21.41 oz. (607g)
$
