High Power Gearmotor - Tamiya 72003
Highly efficient, this motor and gearbox assembly works well when extra torque is needed and is great for a high torque drive wheel.

$13.99

Motors
Small Geared Motors

Click photo to enlarge.

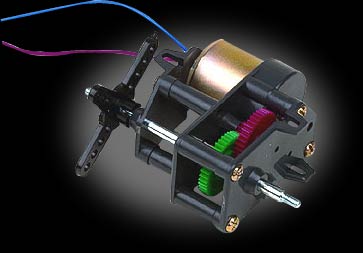

High Power Gearmotor - Tamiya 72003
Part# 0-72003

Please see this product on the new Robot MarketPlace web site. Click here

Highly efficient, this motor and gearbox assembly works well when extra torque is needed. Two gear ratios are possible, and a RE-260 motor is included.

Great for a high torque drive wheel. Some assembly required.

60 x 28 x 41mm
80mm long shaft
Weight: 1.9 oz.
Current: 1.0A @ 3V
Ratios: 41.7:1 and 64.8:1
RPM: 250 and 160 @3V
Torque (g-cm): 670 and 1040 @ 3V
can be run safely up to 8.4V

Click on a thumbnail to view full size image.

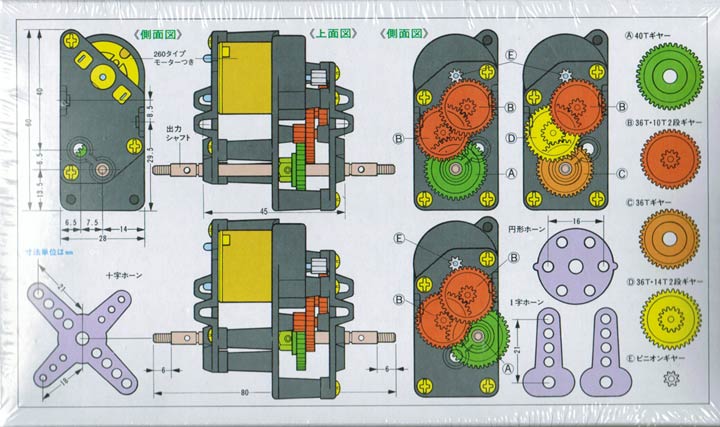

Dimensional Drawing

Click here to add your own review or comment for this product.

4/2/2010

George

Gear Motor

I bought two of these for the small RC tank I was building, they are indeed high power and efficient ... for only three volts at one amp. If three volts and one amp is your available range of power, these are perfect for you, but if you're the kind of person that would "overpower" often, you're gonna find youself burning these poor things, I did at 9.6 volts which is riduculous and maybe even a plus for these gearmotors. Anyway if 3 volts and one amp is your domain, these are perfectly suited.
